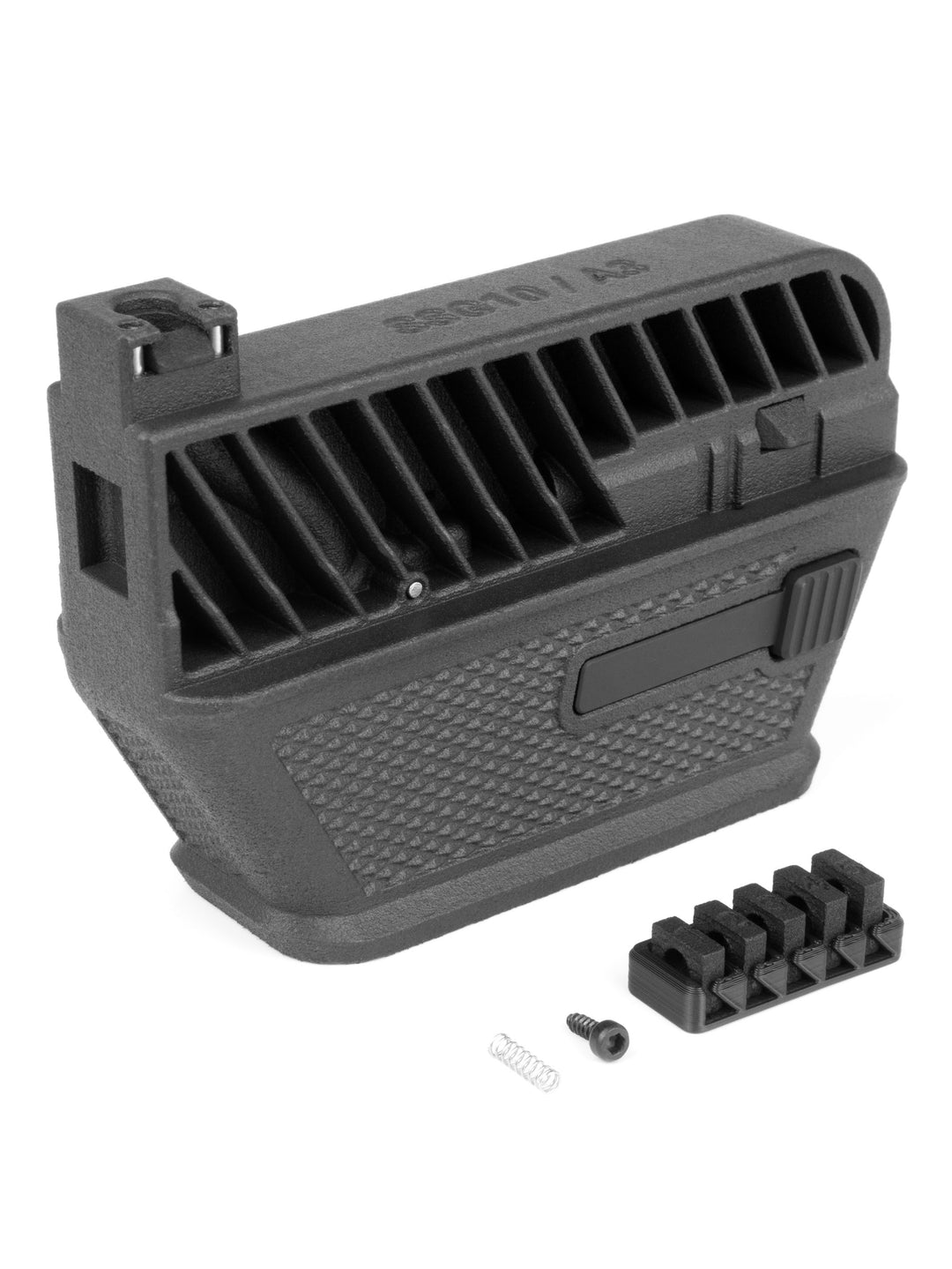

M4 magwell adapter with rib-slotted top, angled grip, and included spring, screw, and BB stopper part.

Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above

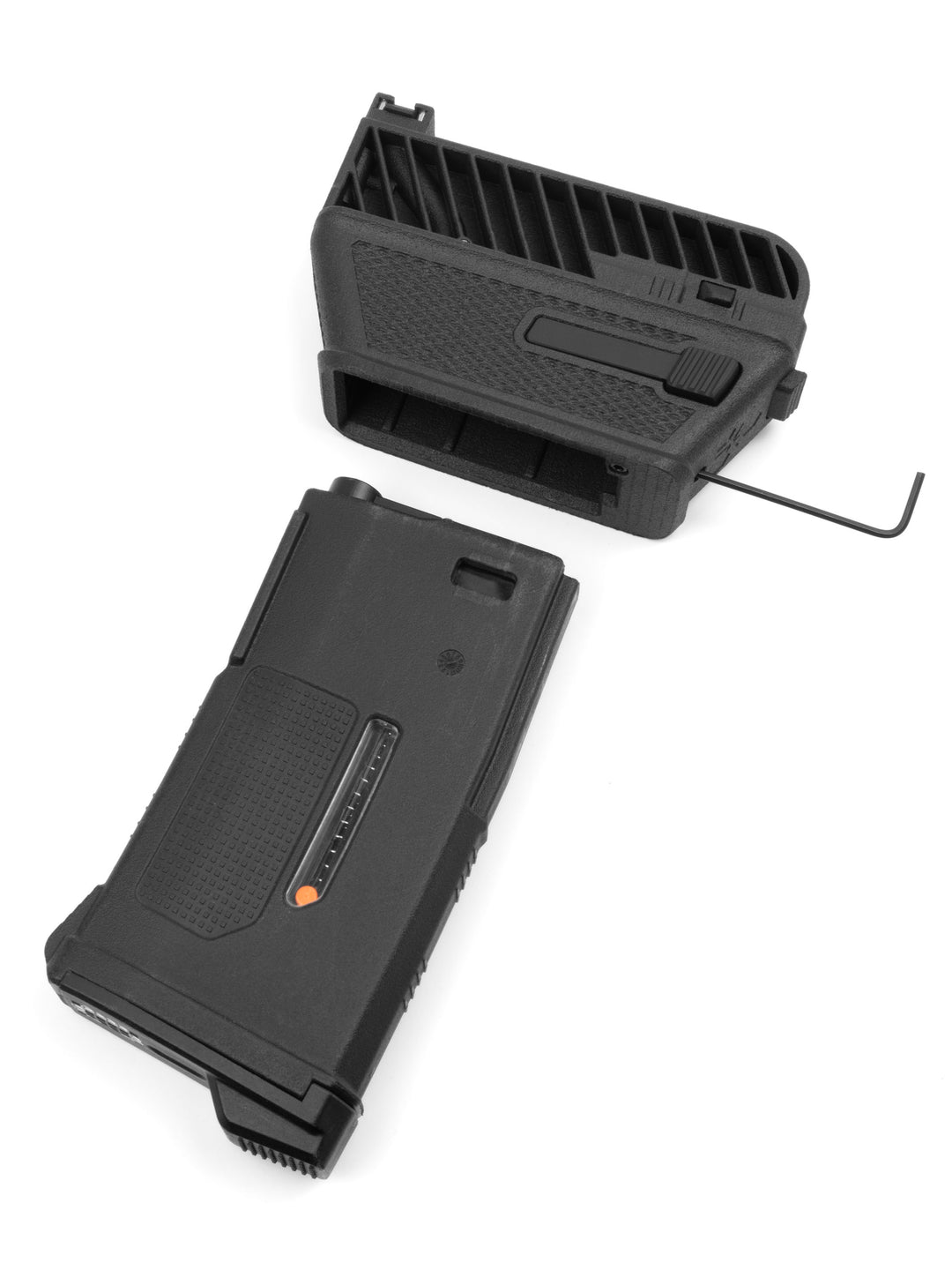

Adapter body shown apart from an inserted M4 magazine, with an angled wrench tool resting nearby.

Side view of the adapter showing the latch tab, textured grip panel, and small hex bolt on the lower body.

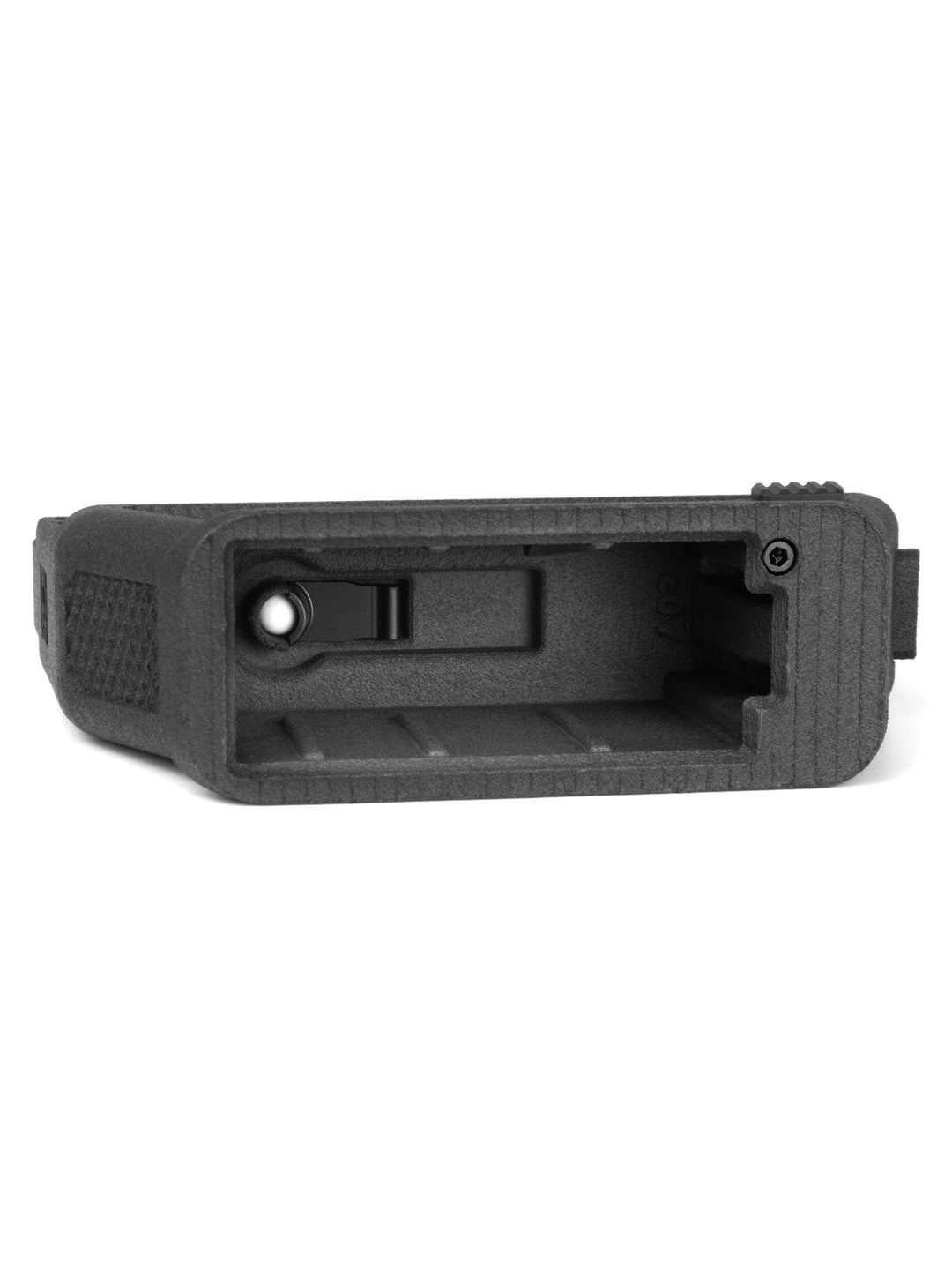

Underside view of the adapter revealing the internal latch mechanism and ribbed magazine channel.

Adapter with ribbed top, angled grip, and included spring, screw, and BB stopper laid out beside it.

Adapter and magazine attached beneath the stock of a Novritsch SSG10 rifle fitted with a scope.

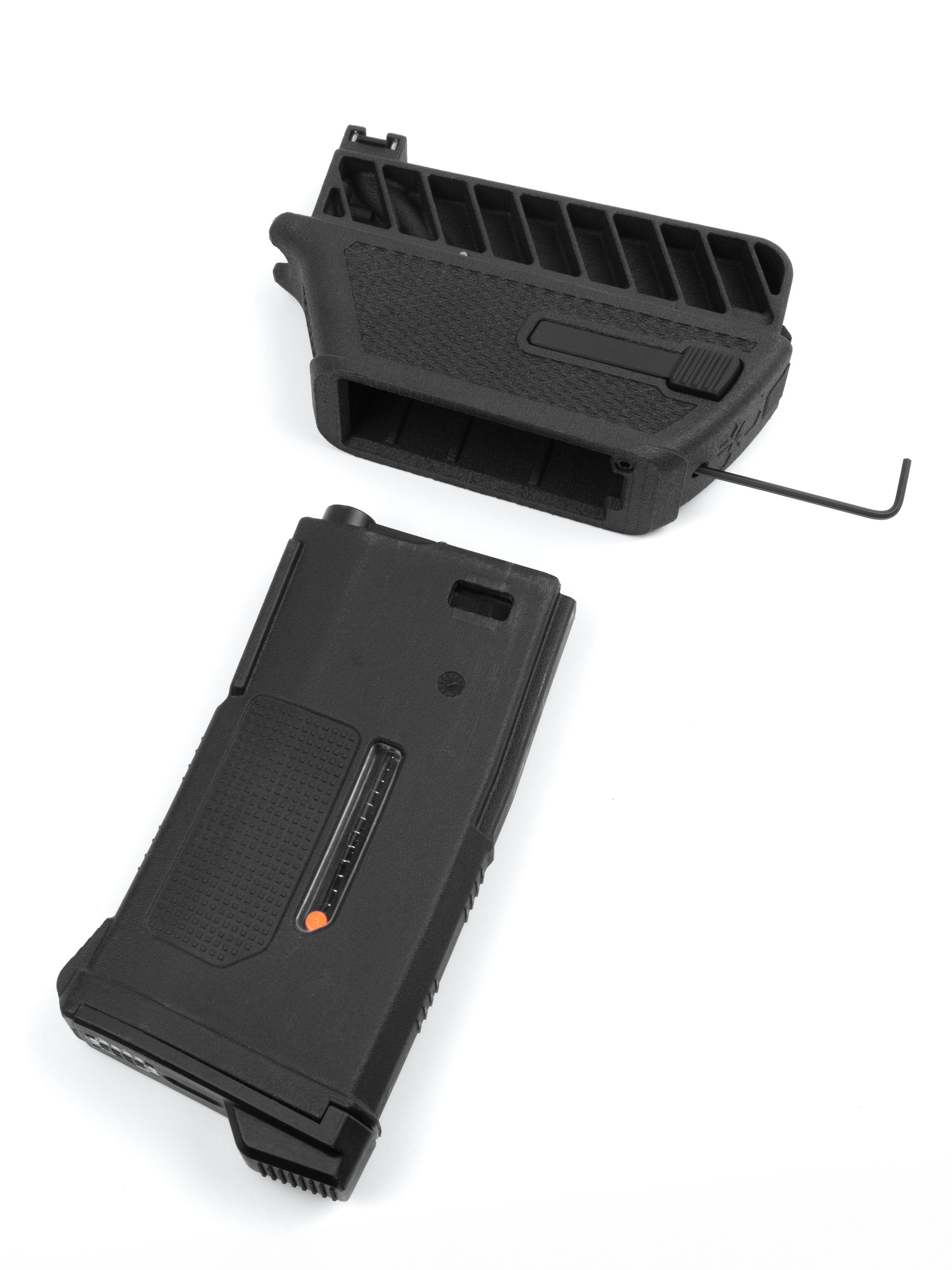

Adapter body shown separately from an M4 magazine, with the included hex key beside it.

Side view of the adapter showing the vented body, latch lever, and rear locking tab.

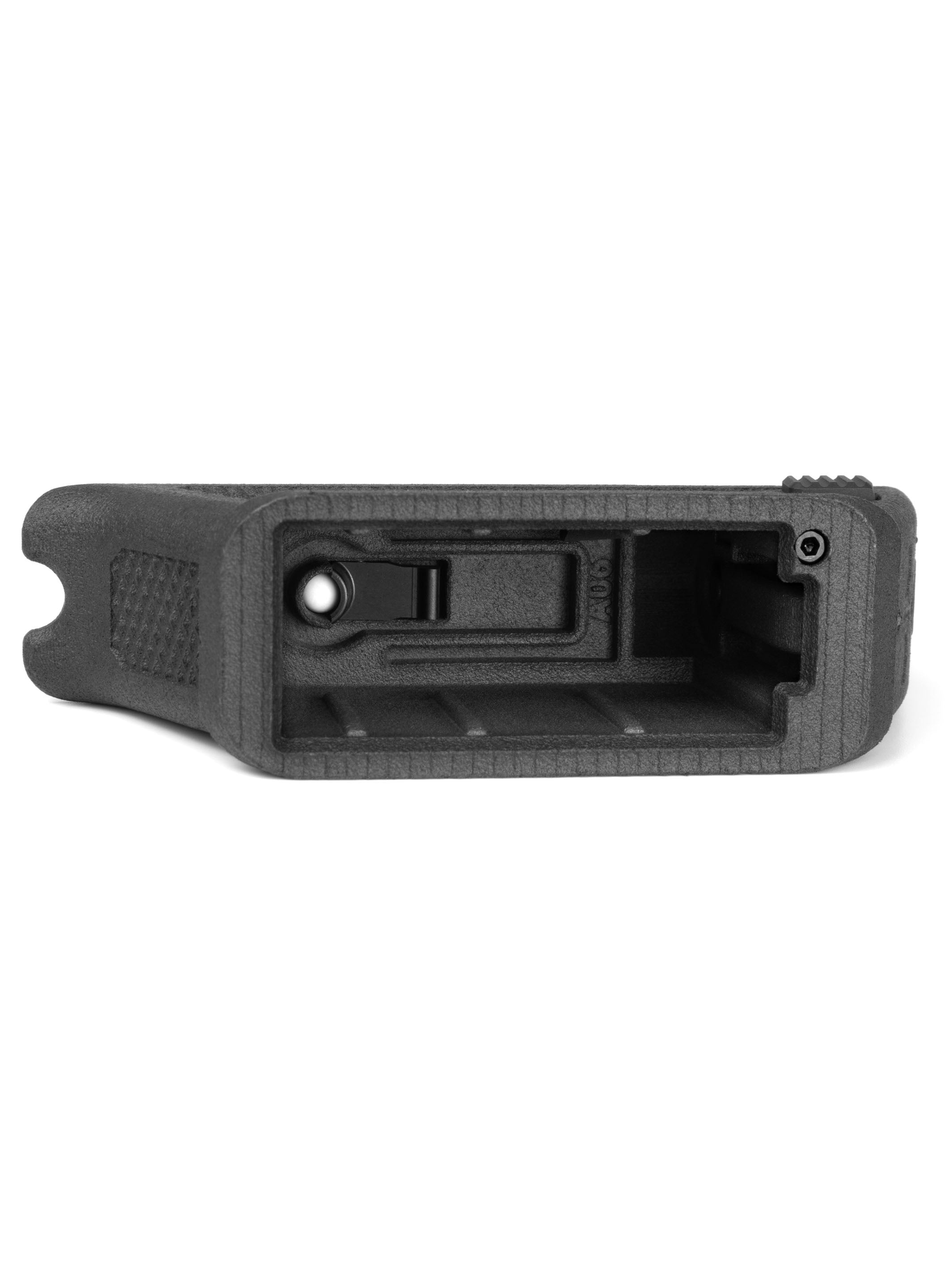

Bottom view of the adapter looking into the open magwell channel and latch mechanism.

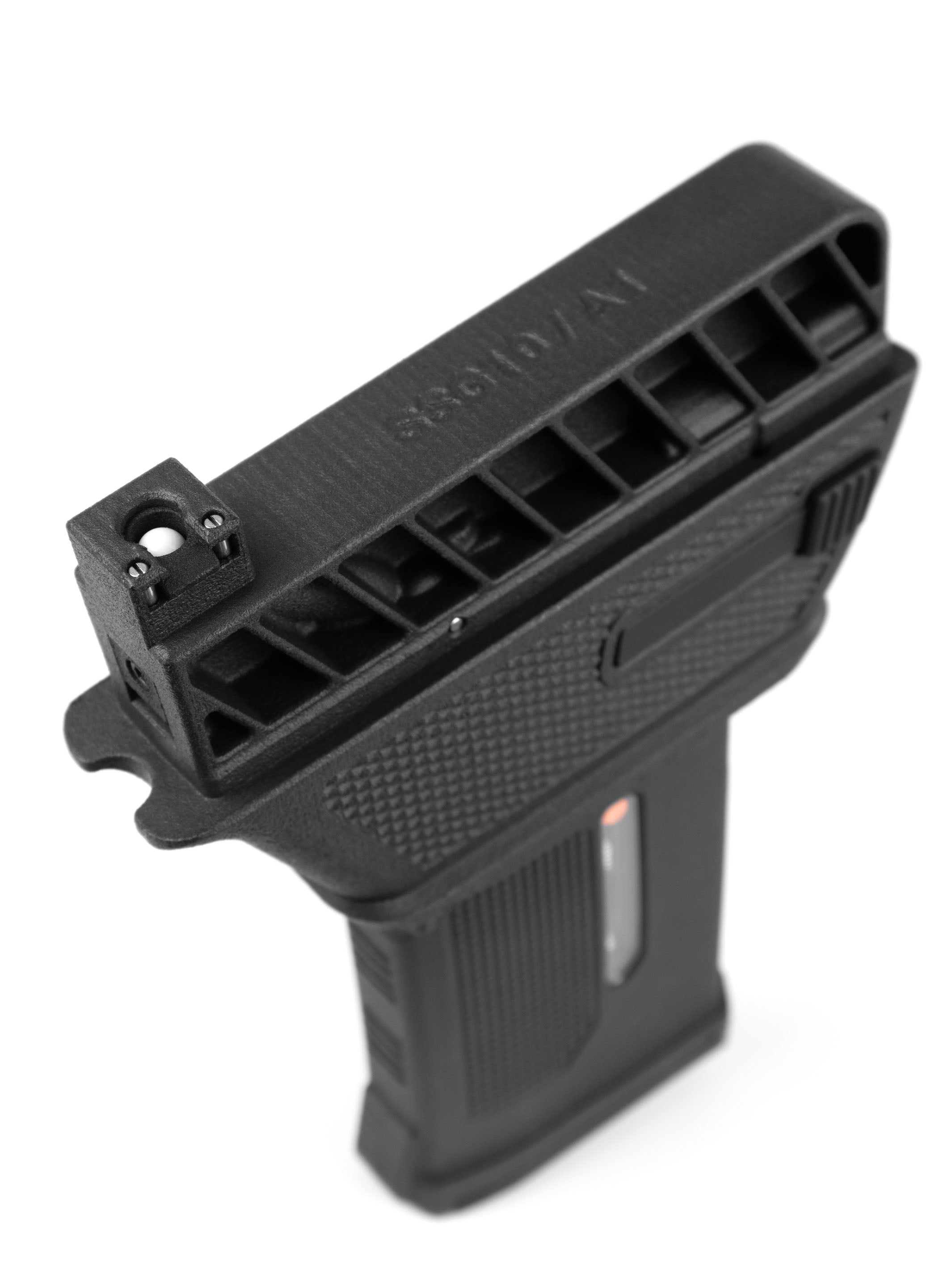

Angled top-down view of the adapter attached to an M4 magazine with orange follower visible.

Adapter with M4 magazine and included small parts, spring, screw, and rail piece laid out beside it.

Adapter mounted under a Novritsch SSG-10 rifle with an M4 magazine inserted and scope attached above.

M4 adapter and M4 magazine lying separately, showing the adjustable magwell and adjustment tool

Angled rear view of the adapter showing the textured grip panel and front and back latching tabs

Underside view of the adapter showing the open magwell channel and internal latch mechanism

M4 magazine adapter for the SSG10 / VSR10, A3 version, with an M4 magazine locked into the magwell

M4 magwell adapter with rib-slotted top, angled grip, and included spring, screw, and BB stopper part.#type_a1

Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above#type_a1

Close-up of the adapter's ribbed top rail, latch button, and textured angled grip mounted above a magazine.#type_a1

Adapter body shown apart from an inserted M4 magazine, with an angled wrench tool resting nearby.#type_a1

Side view of the adapter showing the latch tab, textured grip panel, and small hex bolt on the lower body.#type_a1

Underside view of the adapter revealing the internal latch mechanism and ribbed magazine channel.#type_a1

Angled top-down view of the adapter's rail slots and front locking block above the grip and magazine.#type_a1

Adapter with ribbed top, angled grip, and included spring, screw, and BB stopper laid out beside it.#type_a2

Adapter and magazine attached beneath the stock of a Novritsch SSG10 rifle fitted with a scope.#type_a2

Close-up of the adapter's top vents, engraved model code, and angled grip texture.#type_a2

Adapter body shown separately from an M4 magazine, with the included hex key beside it.#type_a2

Side view of the adapter showing the vented body, latch lever, and rear locking tab.#type_a2

Bottom view of the adapter looking into the open magwell channel and latch mechanism.#type_a2

Angled top-down view of the adapter attached to an M4 magazine with orange follower visible.#type_a2

Adapter with M4 magazine and included small parts, spring, screw, and rail piece laid out beside it.#type_a3

Adapter mounted under a Novritsch SSG-10 rifle with an M4 magazine inserted and scope attached above.#type_a3

Close-up angled view of the adapter's ribbed top and textured angled grip section.#type_a3

M4 adapter and M4 magazine lying separately, showing the adjustable magwell and adjustment tool#type_a3

Angled rear view of the adapter showing the textured grip panel and front and back latching tabs#type_a3

Underside view of the adapter showing the open magwell channel and internal latch mechanism#type_a3

M4 magazine adapter for the SSG10 / VSR10, A3 version, with an M4 magazine locked into the magwell#type_a3

TRIDOS.DESIGN

M4 Adapter for SSG10 / VSR10

Name: M4 Adapter for SSG10 / VSR10
Brand: TRIDOS.DESIGN
SKU: M4-ADA-SSG10-A1
Price: 119.0 EUR
Availability: InStock

€119.00

Tax included. Shipping calculated at checkout.

Type

Quantity

Add-ons

More for your SSG10 / VSR10.

BB Stopper + Spring Upgrade for SSG10 / VSR10 +€12.00

TRIDOS Patch V2 +€5.00

In stock

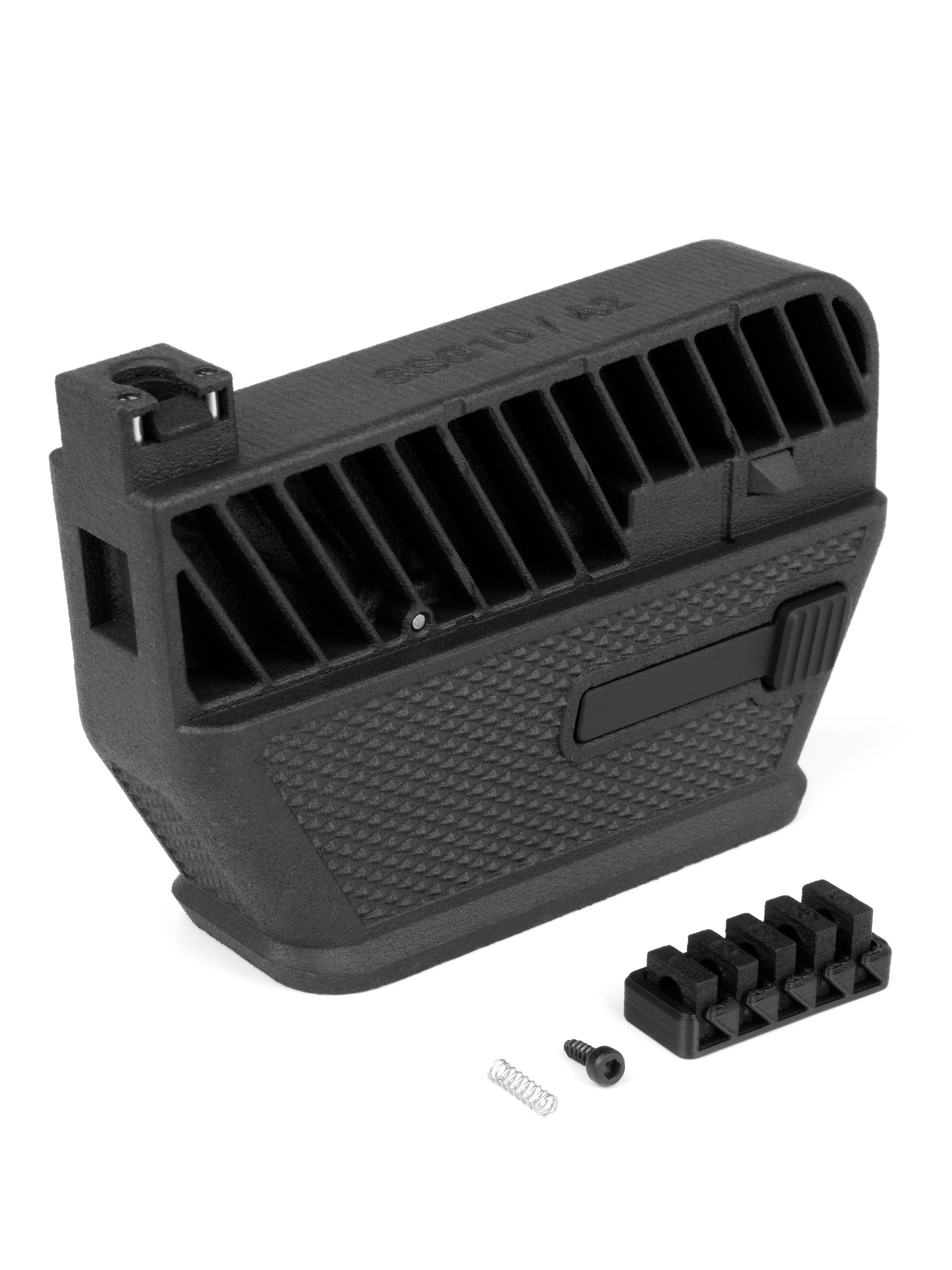

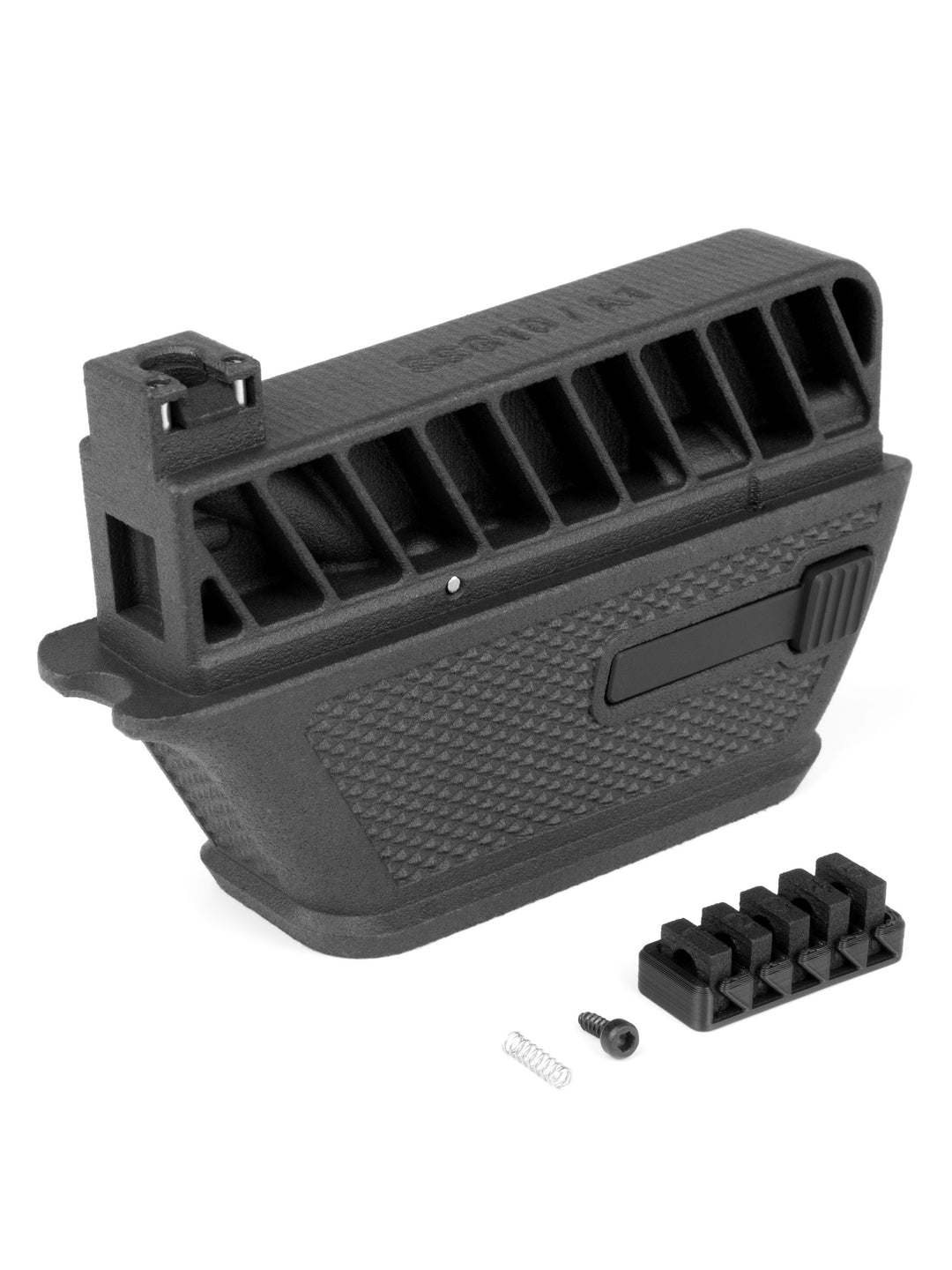

1x M4 adapter
1x hop chamber spring upgrade
5x height blocks
1x M2.6*8 screw

Installation guide

Worldwide shipping starts at 7.90€ and is calculated during checkout based on location.

Orders are usually fulfilled in 1-2 business days and are shipped from our warehouse in Netherlands.

⚠ Duties may apply if you're based outside EU economic zone

⚠ CHECK FOR COMPATIBILITY BEFORE BUYING

→ USE ANY M4 MAGAZINE
→ DOUBLES AS ANGLED GRIP
→ ADJUSTABLE M4 MAGWELL

This allows your SSG10 / VSR10 to take pretty much any M4 magazine. Forget about reloading and focus on shooting!

Made from durable PA12 Nylon
BB retention mechanism
Adjustable magwell for M4 magazines

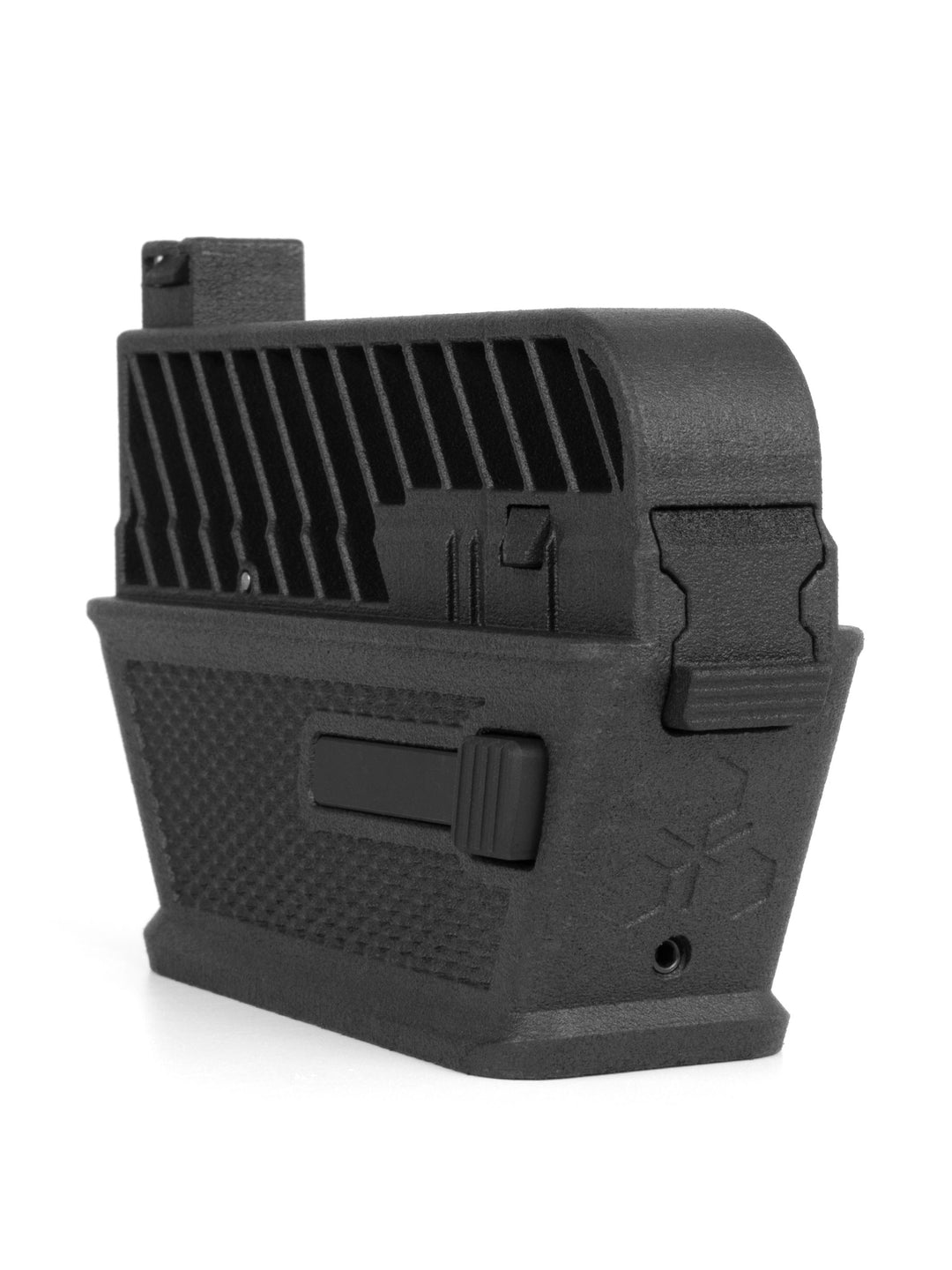

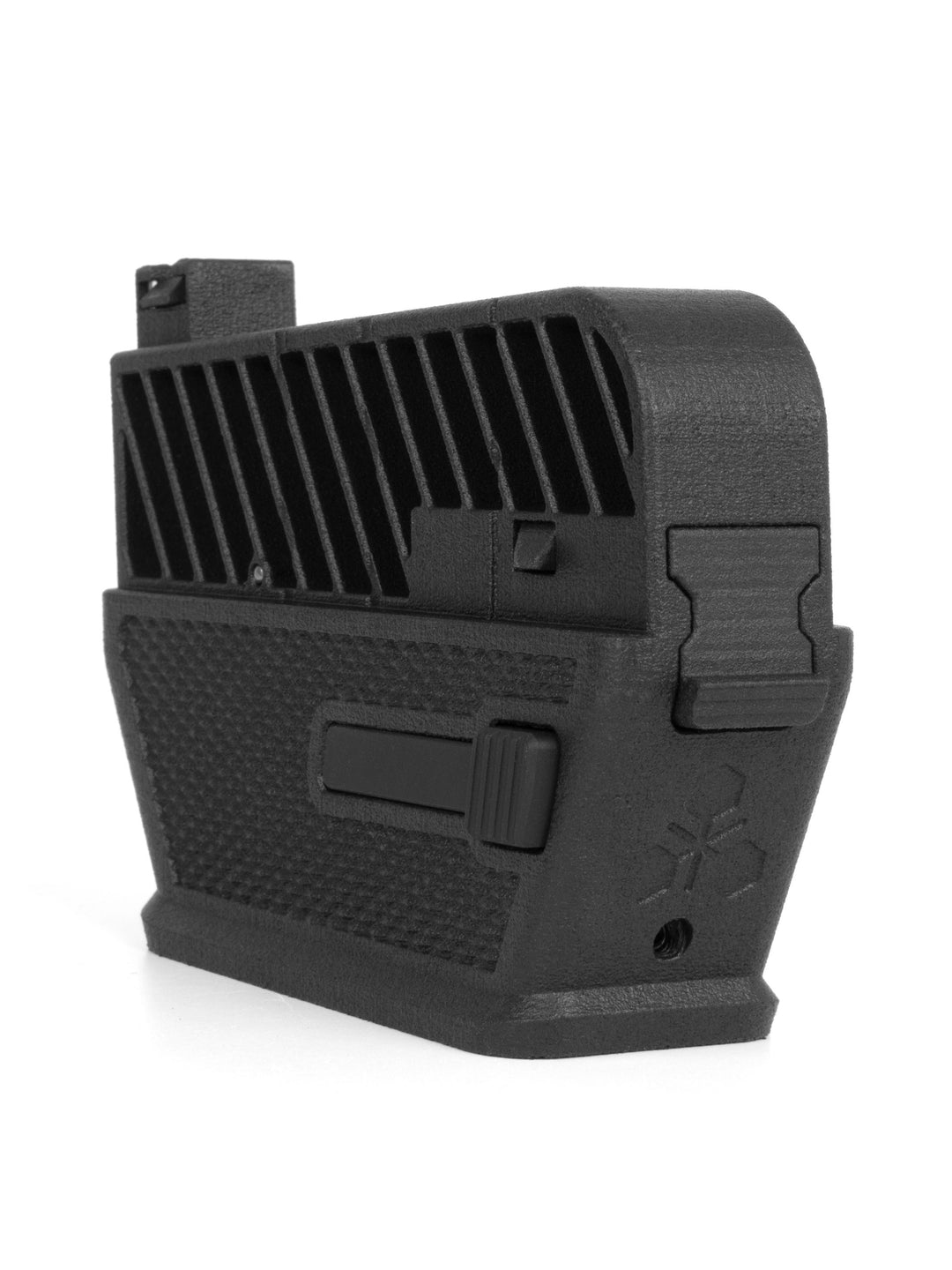

Latching mechanism in front and back

Compatibility

This is a list of compatible replicas that we have personally tested. Compatibility with any other stock or replica outside this chart is unknown.

Use this table to select the correct adapter type:

Replica	Type
Novritsch SSG10 A1	A1
Novritsch SSG10 A2	A2
Novritsch SSG10 A3	A3
Tokyo Marui VSR10	A1
Jing Gong BAR10	A1
WELL MB02	A1
Cyma CM.700	A1
Maple Leaf MLC 338	A2
Maple Leaf MLC-S1 stock	A2
Maple Leaf MLC-S2 stock	A3

Back-side locking

To make the best possible product, it was not possible to make a universal SSG10 / VSR10 adapter that would work perfectly in every possible stock for VSR10 platform.

We chose to make 3 versions for most popular stock options on the market that each have different back-side locking mechanism. They will not fit in a different stock - if they do, it's a pure coincidence.

Adjustable magwell

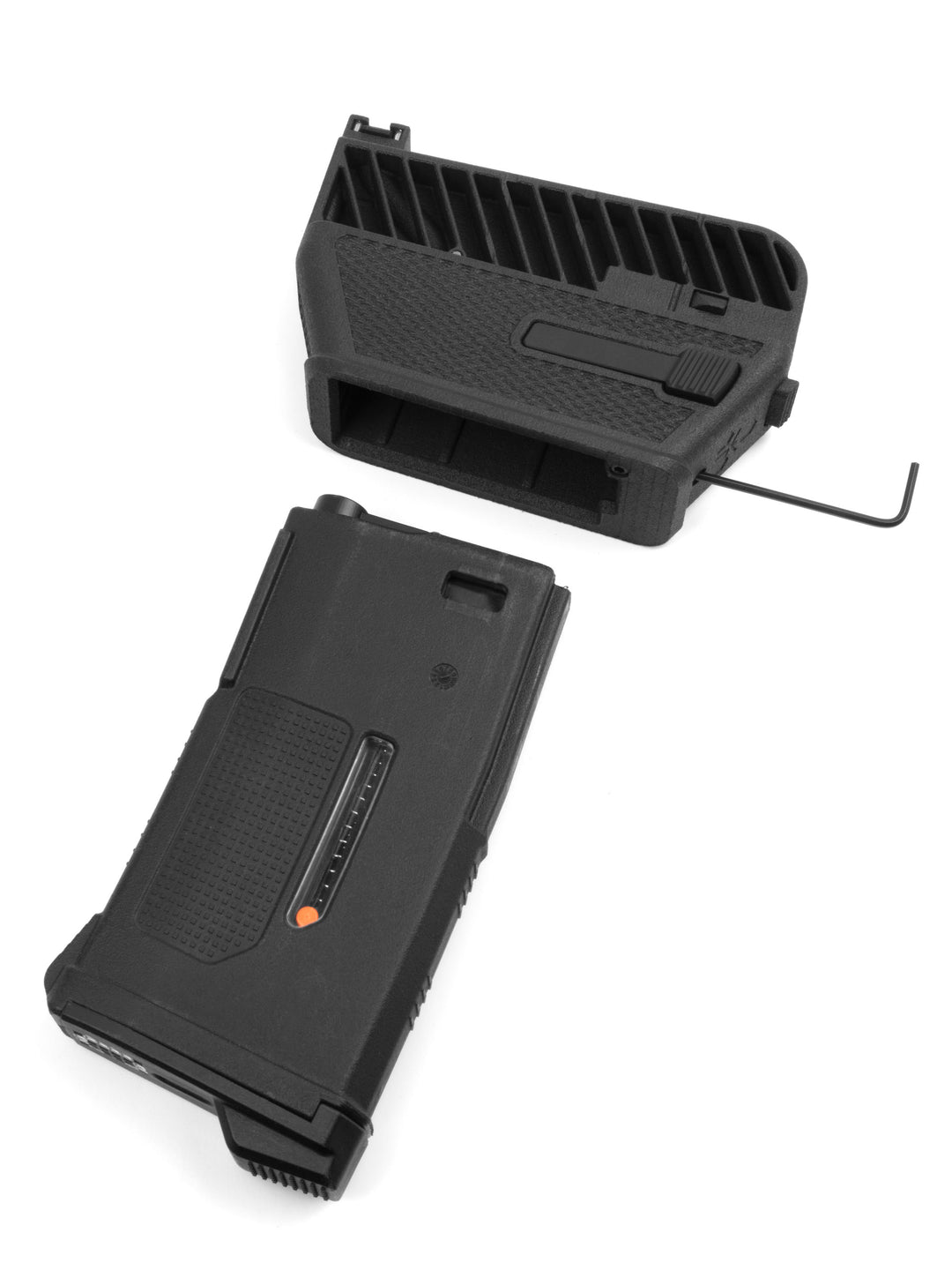

The M4 magwell on the adapter is adjustable to enable use of practically any M4 magazine on the market and make it fit perfectly without any wobble.

⚠ Not all M4 magazines are capable of reliably feeding 0.40g+ BB's

To avoid any possible issues with using the adapter, we strongly recommend to use high quality M4 magazines with strong feed springs. Some known good magazines:

PTS EPM / 150rd
PTS EPM1 / 250rd
PTS EPM1S / 170rd
ARES Amoeba Short / 120rd

Spring upgrade required

Adapter comes with a stronger BB stopper spring included in the kit. This is required to avoid double-feeding with strong mid-cap M4 magazines. This spring is compatible with most split VSR10 style hop chambers.

The increased strength of the spring might increase wear on the plastic BB retention arm! If this is a problem, we offer an upgraded metal BB stopper.

Durability

The body is made out of a single piece Nylon PA12 while the latch and BB retention mechanism is made out of CNC machined aluminum. This makes the adapter extremely durable and will last you.

[{"id":49075173163337,"title":"A1","option1":"A1","option2":null,"option3":null,"sku":"M4-ADA-SSG10-A1","requires_shipping":true,"taxable":true,"featured_image":{"id":51559918109001,"product_id":8758778233161,"position":2,"created_at":"2023-11-09T10:43:45+02:00","updated_at":"2025-06-19T01:02:09+03:00","alt":"Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above#type_a1","width":2130,"height":2840,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9570_5a96479d-9a8d-48df-ba7d-412aa64aa857.jpg?v=1750284129","variant_ids":[49075173163337]},"available":true,"name":"M4 Adapter for SSG10 \/ VSR10 - A1","public_title":"A1","options":["A1"],"price":11900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4751040011407","featured_media":{"alt":"Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above#type_a1","id":44184023335241,"position":2,"preview_image":{"aspect_ratio":0.75,"height":2840,"width":2130,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9570_5a96479d-9a8d-48df-ba7d-412aa64aa857.jpg?v=1750284129"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49075173196105,"title":"A2","option1":"A2","option2":null,"option3":null,"sku":"M4-ADA-SSG10-A2","requires_shipping":true,"taxable":true,"featured_image":{"id":51559950385481,"product_id":8758778233161,"position":9,"created_at":"2023-11-09T10:46:59+02:00","updated_at":"2025-06-19T01:01:35+03:00","alt":"Adapter and magazine attached beneath the stock of a Novritsch SSG10 rifle fitted with a scope.#type_a2","width":2130,"height":2840,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9581.jpg?v=1750284095","variant_ids":[49075173196105]},"available":true,"name":"M4 Adapter for SSG10 \/ VSR10 - A2","public_title":"A2","options":["A2"],"price":11900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4751040011155","featured_media":{"alt":"Adapter and magazine attached beneath the stock of a Novritsch SSG10 rifle fitted with a scope.#type_a2","id":44184056168777,"position":9,"preview_image":{"aspect_ratio":0.75,"height":2840,"width":2130,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9581.jpg?v=1750284095"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49075173228873,"title":"A3","option1":"A3","option2":null,"option3":null,"sku":"M4-ADA-SSG10-A3","requires_shipping":true,"taxable":true,"featured_image":{"id":51559970013513,"product_id":8758778233161,"position":16,"created_at":"2023-11-09T10:48:35+02:00","updated_at":"2025-06-19T01:01:35+03:00","alt":"Adapter mounted under a Novritsch SSG-10 rifle with an M4 magazine inserted and scope attached above.#type_a3","width":2130,"height":2840,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9590.jpg?v=1750284095","variant_ids":[49075173228873]},"available":true,"name":"M4 Adapter for SSG10 \/ VSR10 - A3","public_title":"A3","options":["A3"],"price":11900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4751040011421","featured_media":{"alt":"Adapter mounted under a Novritsch SSG-10 rifle with an M4 magazine inserted and scope attached above.#type_a3","id":44184076419401,"position":16,"preview_image":{"aspect_ratio":0.75,"height":2840,"width":2130,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9590.jpg?v=1750284095"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":49075173163337,"title":"A1","option1":"A1","option2":null,"option3":null,"sku":"M4-ADA-SSG10-A1","requires_shipping":true,"taxable":true,"featured_image":{"id":51559918109001,"product_id":8758778233161,"position":2,"created_at":"2023-11-09T10:43:45+02:00","updated_at":"2025-06-19T01:02:09+03:00","alt":"Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above#type_a1","width":2130,"height":2840,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9570_5a96479d-9a8d-48df-ba7d-412aa64aa857.jpg?v=1750284129","variant_ids":[49075173163337]},"available":true,"name":"M4 Adapter for SSG10 \/ VSR10 - A1","public_title":"A1","options":["A1"],"price":11900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4751040011407","featured_media":{"alt":"Adapter fitted under a Novritsch SSG10 rifle stock with an M4 magazine inserted and a scope mounted above#type_a1","id":44184023335241,"position":2,"preview_image":{"aspect_ratio":0.75,"height":2840,"width":2130,"src":"\/\/tridos.design\/cdn\/shop\/files\/IMG_9570_5a96479d-9a8d-48df-ba7d-412aa64aa857.jpg?v=1750284129"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

⟵ Back to VSR10 Upgrades

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Beta version

I bought the early access adaptor to use with a TM VSR which was set up to use the TDC in the stock TM hop chamber. I’ll get to that.

The mag adaptor is real nice, solidly printed as you would expect with a Tridos product. It has some well thought out features like the doudle release buttons to take it out of the rifle. I have used it in a number of games, but not without issue, remember that pesky stock TM hop chamber?

After lengthy discussions with Mikus and the Tridos team, I tried various springs, retention arms and techniques to make this work flawlessly, none worked perfectly, some did but caused jams or double feeds.

In the end, I ordered the Action Army hop chamber (red one piece available from Tridos). It was easy to fit, with a part delivered from Tridos to help the TDC work, this solved my problem.

If you want the M4 Mag adaptor, I highly recommend using the Action Army hop chamber, at the very least, if you’re using a TM VSR.

I’ve bought the a1 mag adapter for my ssg10 a1 and am wondering how the “height blocks” are used. Any information would be great! Thank you

TRIDOS.DESIGN

Hi Keiran! On the instruction page there is a section about these height blocks. If the adapter fits and feeds perfectly, there is no need to make any adjustments.
