TDC 2.0 for Tokyo Marui VSR10 Chamber
- In stock, ready to ship
Pairs well with:
Worldwide shipping starts at 8€ and is calculated during checkout.
Orders are usually fulfilled in 1-2 working days and are sent from Latvia (Europe).
⚠ Duties may apply if you're based outside EU customs union!
SINGLE BEST PERFORMANCE UPGRADE FOR VSR10. PERIOD.
⚠ CHECK FOR CHAMBER COMPATIBILITY BELOW BEFORE BUYING!

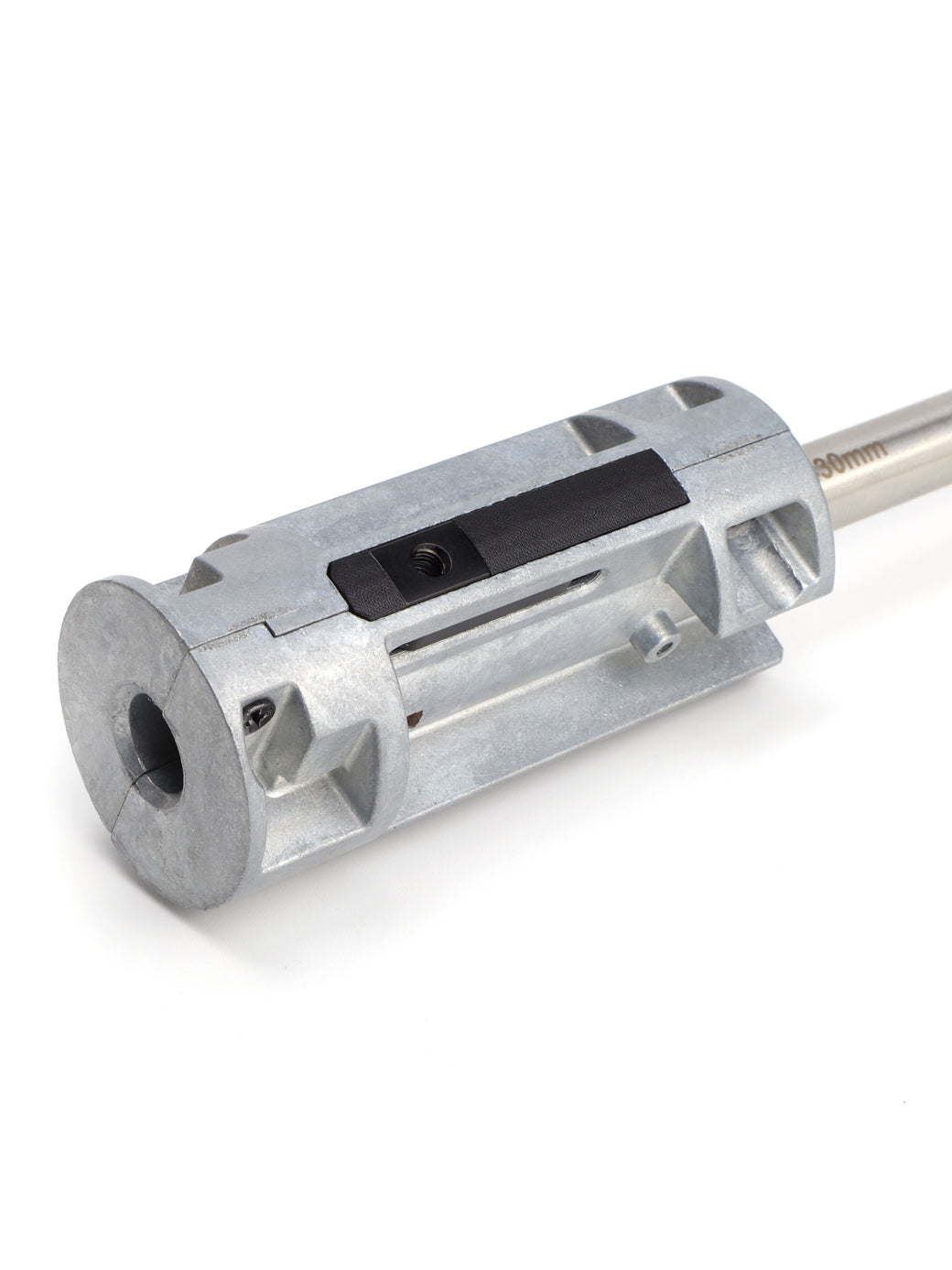

This modification removes the stock hopup arm / slider mechanism and replaces it with a thumbscrew that pushes down from the top. You can make insanely precise adjustments this way and tune your shooting trajectory to perfection.
Compatibility
TDC 2.0 is compatible with any bucking / r-hop. This version of TDC 2.0 is compatible only with non-bridged barrels.
Our TDC's are designed to fit only a specific chamber. Here are the exact compatible chambers that this version of TDC 2.0 works with:
| Genuine Tokyo Marui VSR10 chamber | ✔ |
| JG BAR10 stock chamber |
✔ |
| Cyma CM.701 stock chamber |
✔ |
| WELL MB02 / MB03 stock chamber | ⚠ fits with modifications |
| Maple Leaf MLC-338 stock chamber | ⚠ fits with modifications |
| Action Army T11 stock chamber | ⚠ fits with modifications |
| CNC Action Army VSR10 chamber | ✖ different version needed |
| SSG10 A1/A2/A3 stock chamber | ✖ different version needed |
| Double Bell VSR-10 stock chamber | ✖ |
Lowest profile on the market
Don't have clearance for TDC you say? Our TDC requires a clearance of just 5.0mm, which means it will work even with the biggest scopes and low scope rings.
It's not going anywhere
The screw is installed in 1/2 aluminum, 1/2 undersized Nylon thread which provides the ultimate combination of durability and resistance to the screw. O-rings and external housing provide additional resistance. Trust me - it's not moving by itself.
No epoxy gluing
We really didn't like the idea of having to permanently glue something on the outside of the barrel. That's why our TDC is an all-internal upgrade that installs inside the stock hop-up chamber and requires no gluing. For the PRO version, the external housing comes with pre-installed strong double sided 3M tape for easy installation and easy removal without damaging the gun. We even include a spare set of tape in the kit.
Vertical pressure nub system
Our TDC replaces traditional hop-up arms with CNC machined aluminum nubs that provide perfectly vertical pressure to the bucking. Each TDC comes with 3x different nubs so you can choose whichever you like the best or use the red universal nub with any off-the-shelf nub like ML Omega / Panthera / soft nub / etc.
Fool-proof installation
We made sure that our TDC 2.0 can be installed with any level of skill. We made sure that our drill jigs are usable with handheld drills, the process is dead simple and there's no way you can mess it up.
We also have detailed step-by-step installation videos from start to finish.
PRO vs. BASIC
PRO version provides the absolute perfection in terms of feedback and looks. The external aluminum housing provides a satisfying click to the thumbscrew that allows to precisely adjust the TDC and protects the screw from accidental bumps. It also acts as an extra safety layer to make sure the screw doesn't turn by itself.
BASIC version provides the same internals and performance of the TDC 2.0 PRO but at a more affordable price point, just without the external aluminum housing (clicking mechanism). In case you ever change your mind, you can purchase the TDC 2.0 Pro Upgrade separately at any time to get the full experience!
Materials
All of the parts in the kit, except for the drill jig, are CNC machined aluminum and Nylon (some pictures can be outdated). Everything is made to fit flawlessly together with no wobble whatsoever. They look and feel exceptional.
Required for installation:
- drill or drill-press
- beer (optional)
