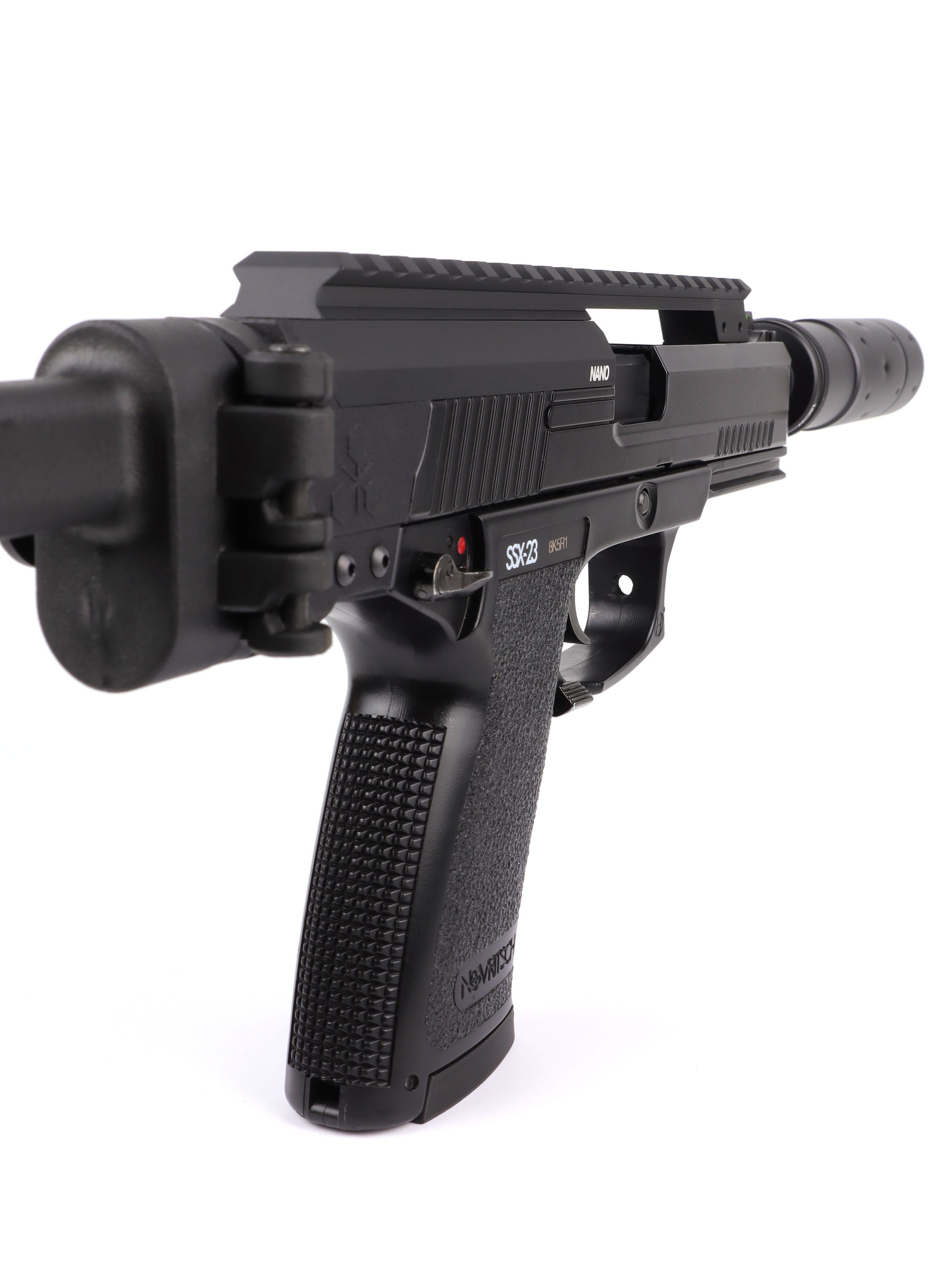

Angled view of a Nano Carbine build with the carbine picatinny rail, stock and suppressor

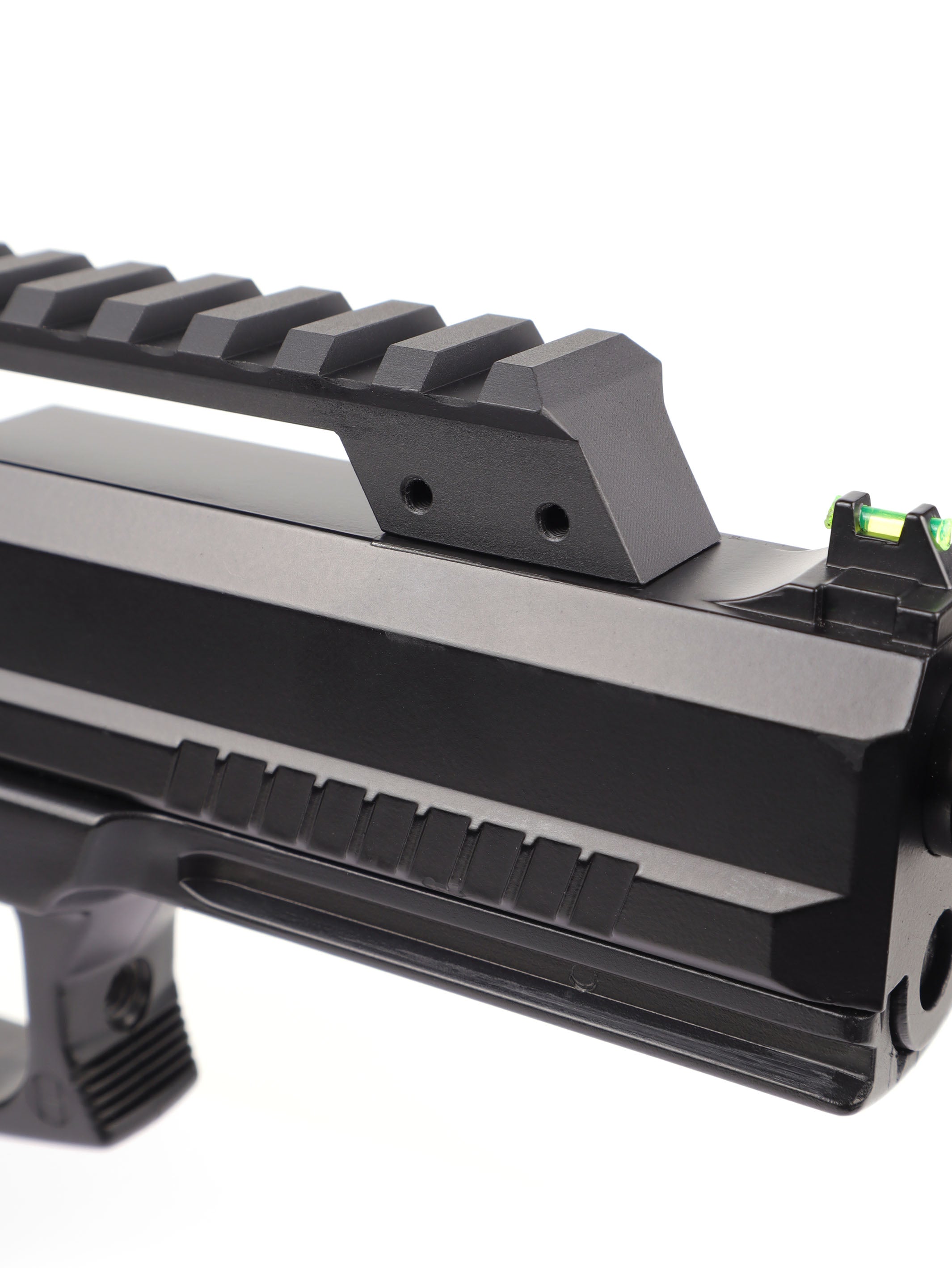

Rear of the long picatinny rail riser bridging the slide, front mounting holes visible

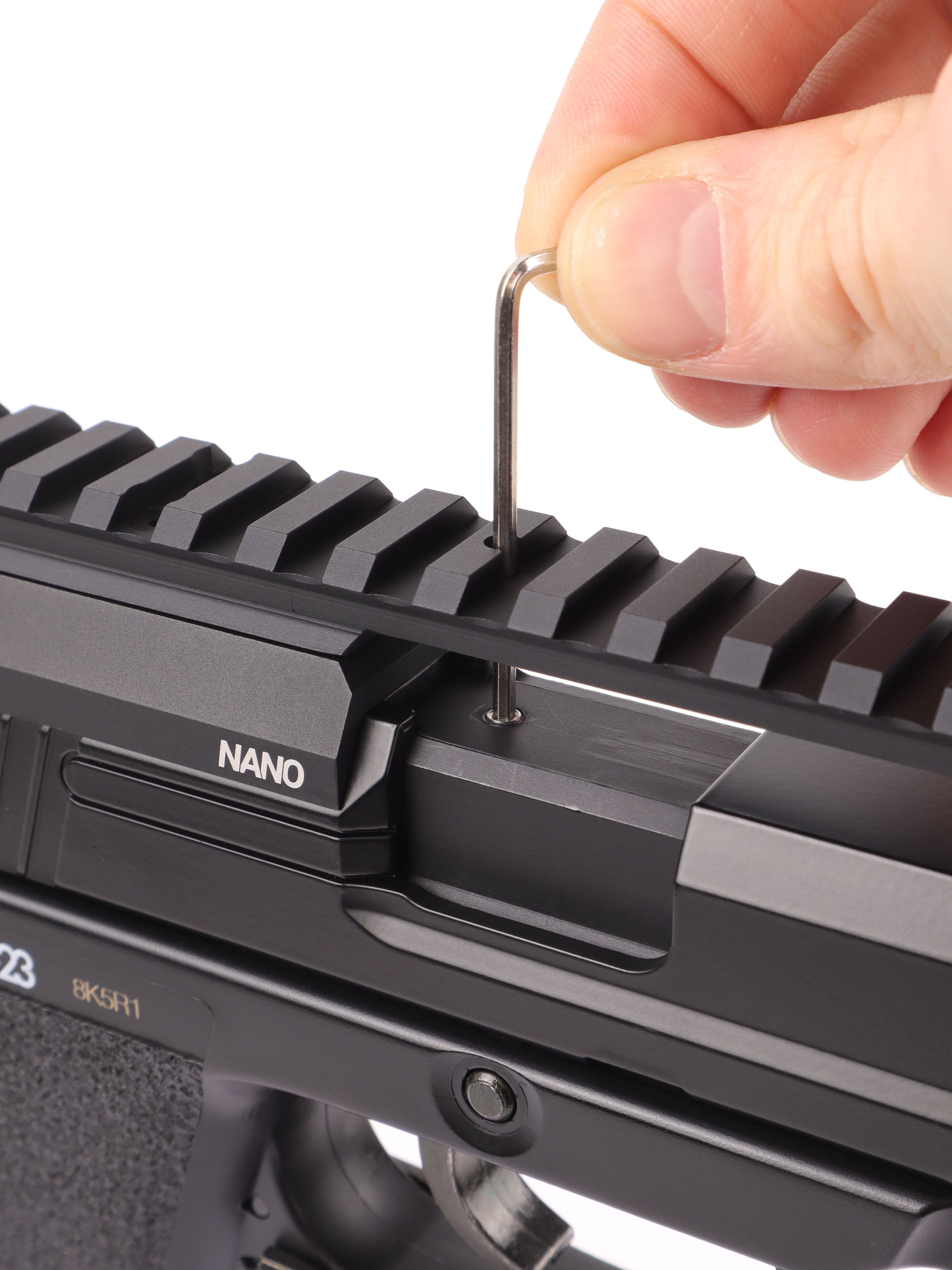

Hex key threading the front mounting screws through the rail into the SSX23 slide

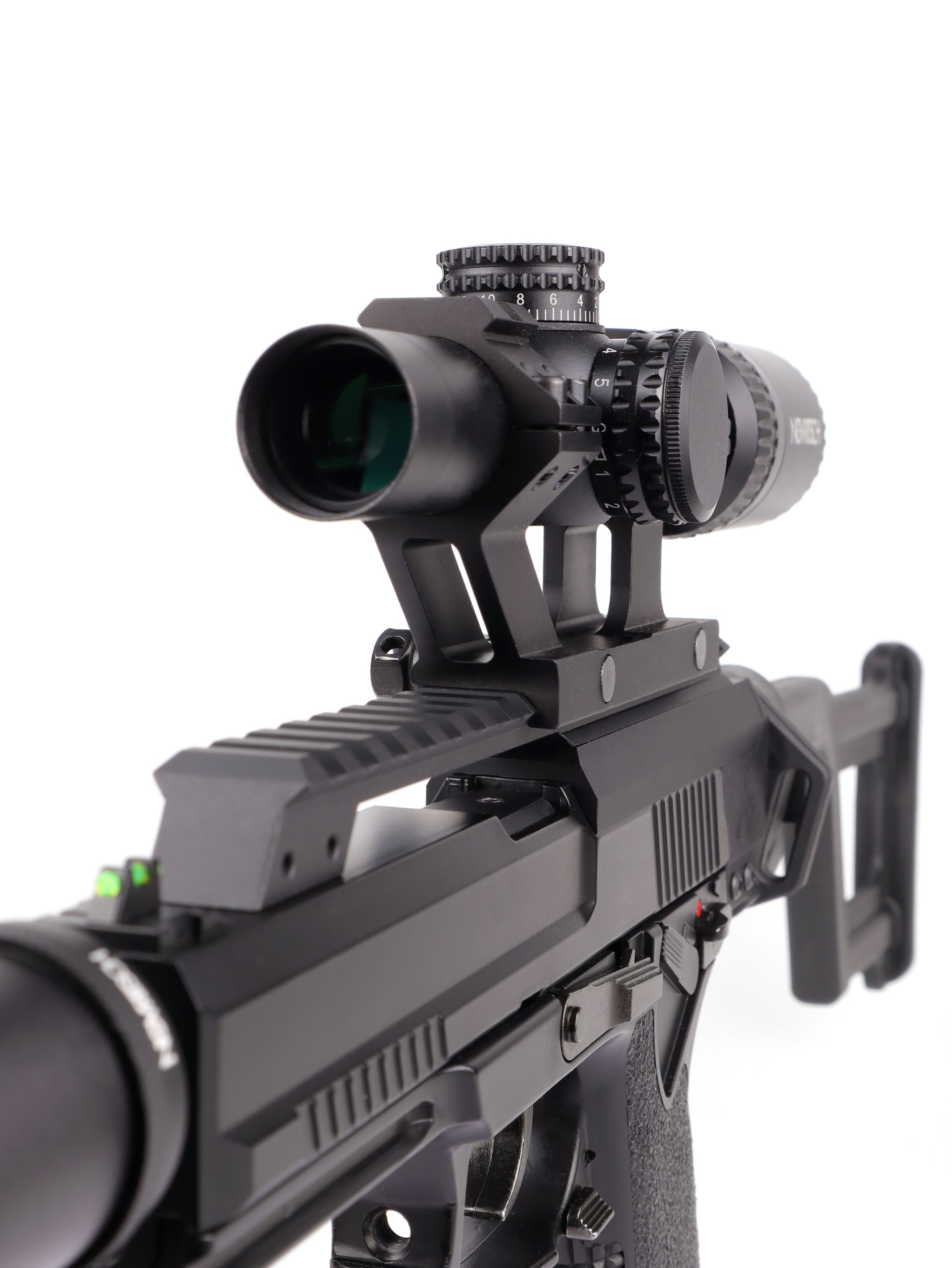

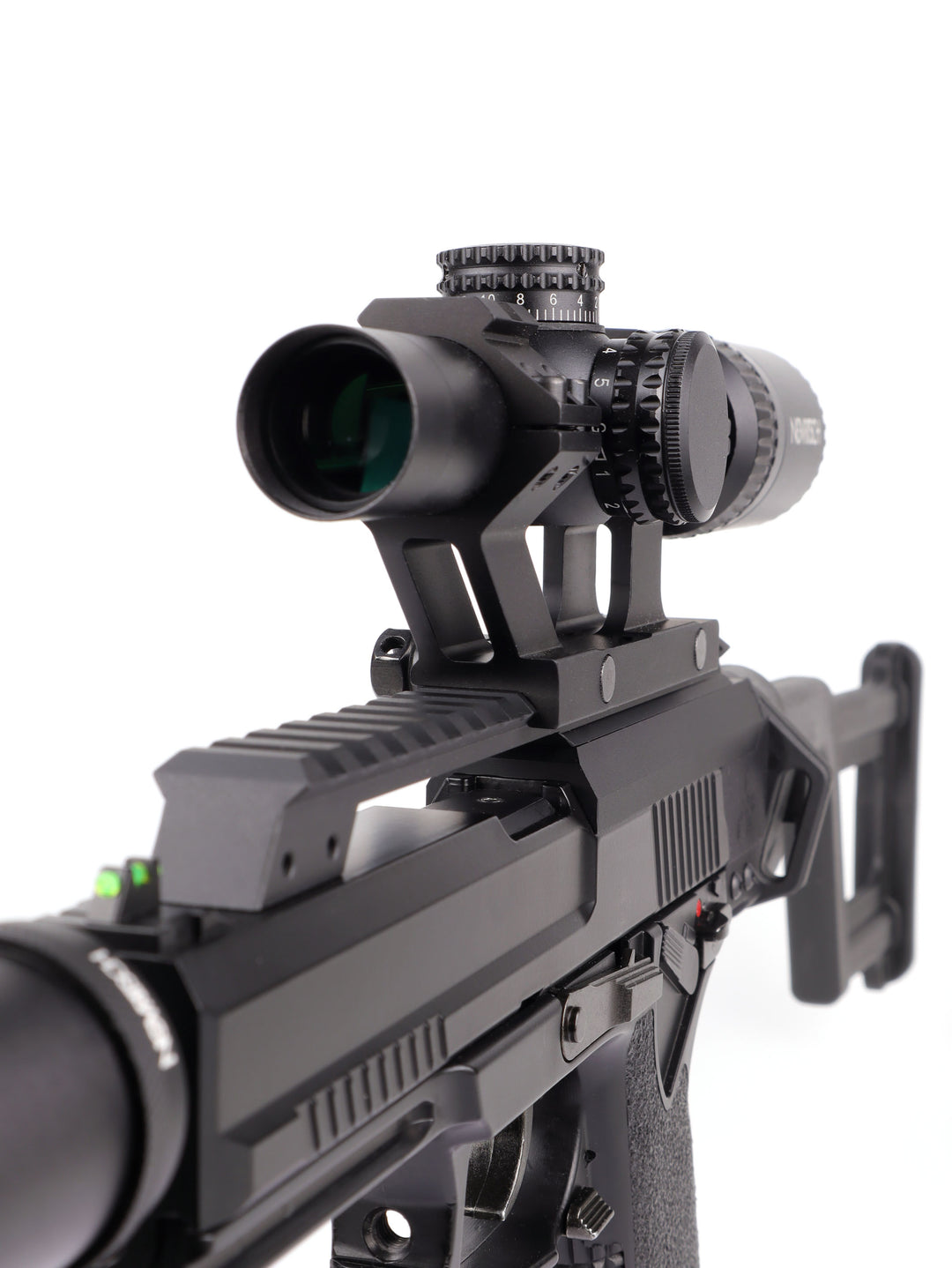

Rifle scope mounted on the full-length picatinny rail of the Nano Carbine

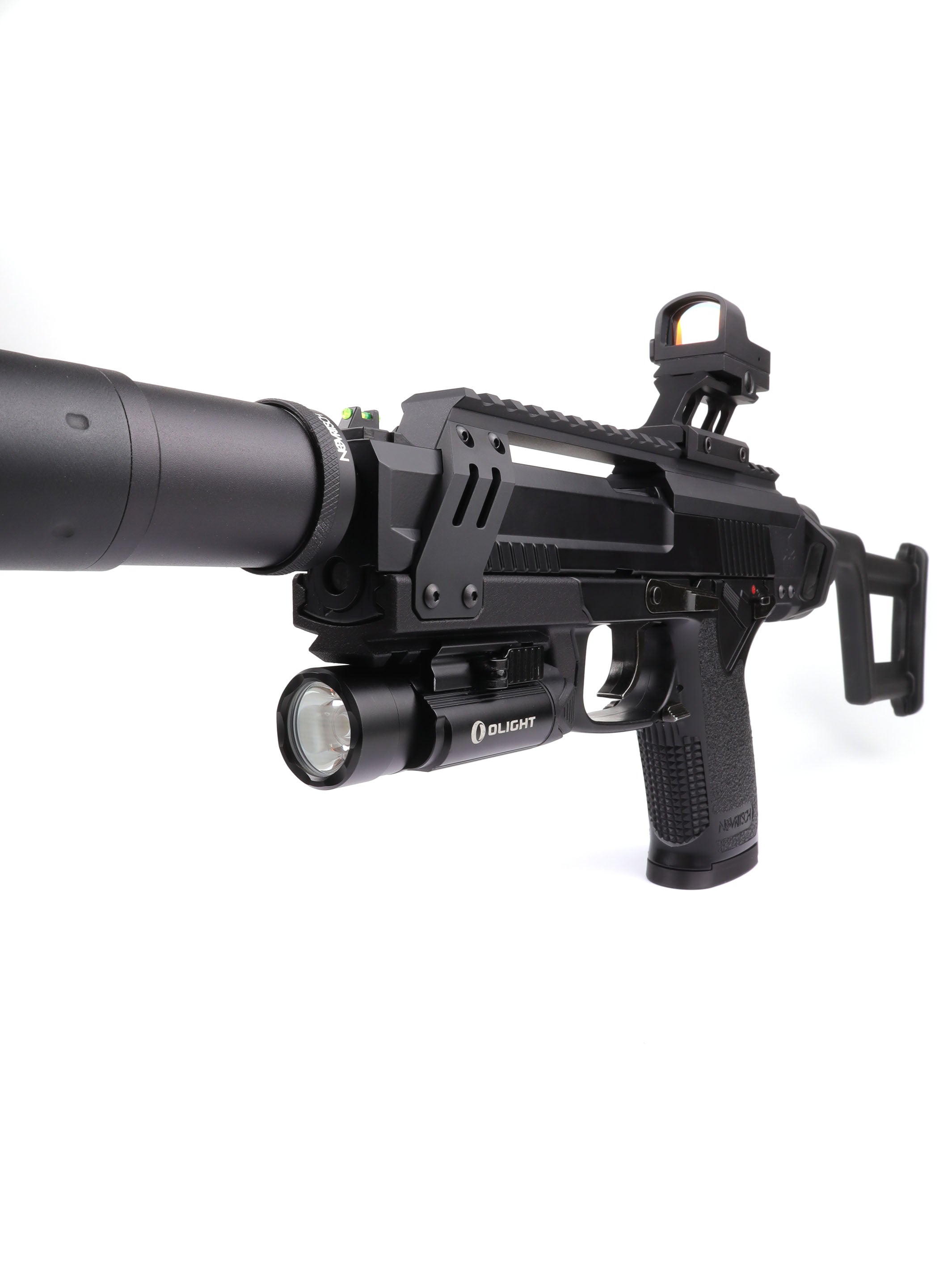

Complete Nano Carbine with flashlight, red dot and suppressor built on the long rail

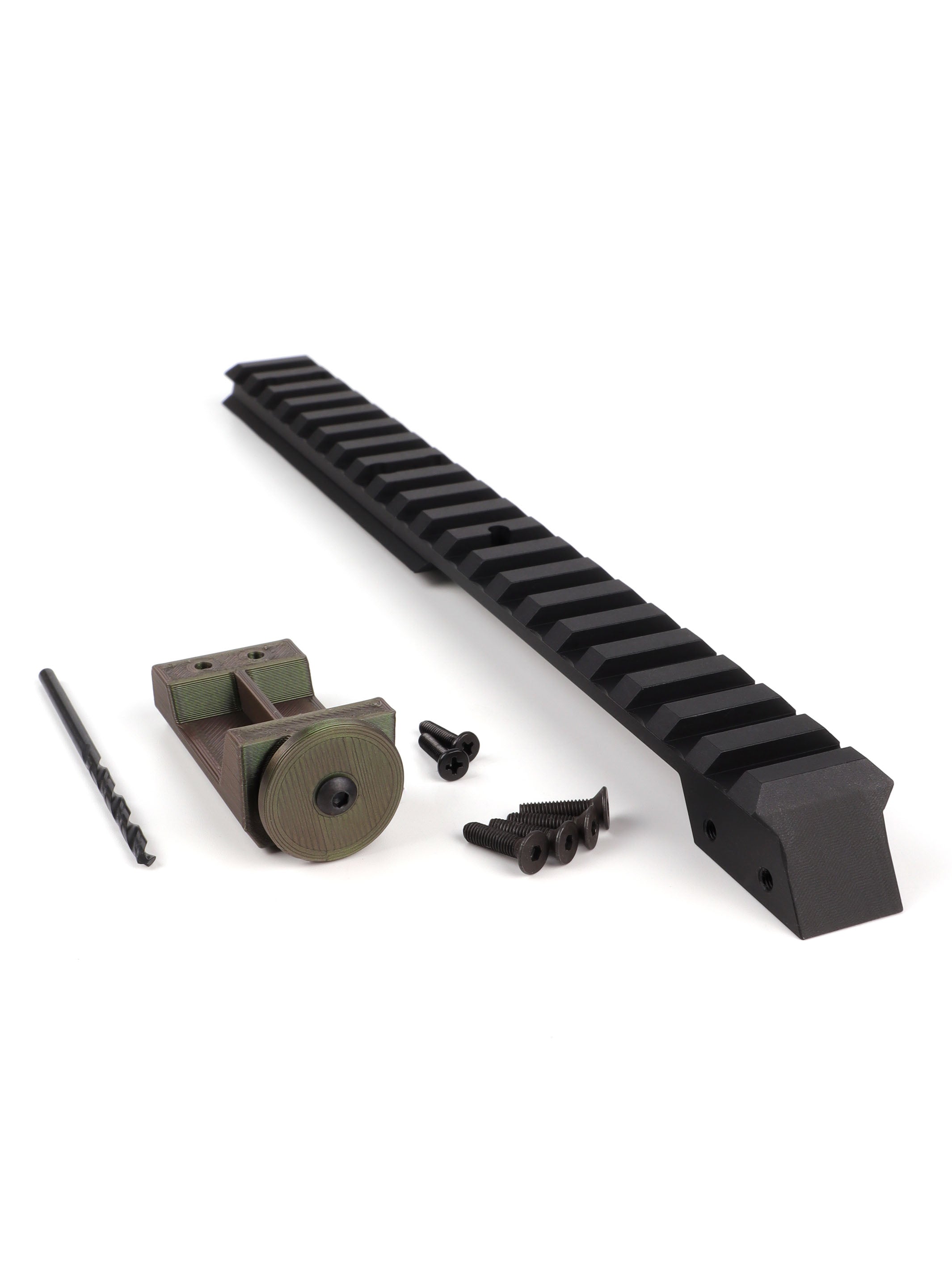

Long picatinny rail kit with 3D printed drill jig, drill bit and mounting screws
Long picatinny rail mounted on the slide of an SSX23 airsoft pistol, side profile view
Angled view of a Nano Carbine build with the carbine picatinny rail, stock and suppressor
Rear of the long picatinny rail riser bridging the slide, front mounting holes visible
Hex key threading the front mounting screws through the rail into the SSX23 slide
Rifle scope mounted on the full-length picatinny rail of the Nano Carbine
Complete Nano Carbine with flashlight, red dot and suppressor built on the long rail
Long picatinny rail kit with 3D printed drill jig, drill bit and mounting screws
TRIDOS.DESIGN

Long Picatinny Rail /Nano Carbine/

€32.00 EUR
/
Tax included. Shipping calculated at checkout.
Rail length
  • Shipping worldwide from EU
  • In stock, ready to ship
  • Backordered, shipping soon

Pairs well with:
  • 1x long picatinny rail
  • 4x M3x12 countersink screws
  • 2x M2.5x8 screws
  • 1x drill jig
  • 1x 2.5mm drill bit

Worldwide shipping starts at 7.90€ and is calculated during checkout based on location.

Orders are usually fulfilled in 1-2 business days and are shipped from our warehouse in Netherlands.

⚠ Duties may apply if you're based outside EU economic zone

This is the full length picatinny top rail that enables use of any scope. In front it has holes for Slide Stabilizers that lock the slide and frame together to avoid any side to side movement / wobble.

In the center you will find a cutout that's made for SSX23 TDC adjustment screw. Update: We made the cutout larger to accomodate all other MK23 TDC covers, like Hadron Design's 3-screw plate. Current and all future batches come with this change (pictures might not be fully up to date).

It also comes with a drill jig and front mounting screws if you want to run it without the Slide Stabilizers. That way you can make sure the rail is straight and mounted to the slide. This is an optional step and is not required if you use the Side Stabilizers.

Materials

This part is made out of solid piece of CNC machined 6061 aluminum and it has anodized matte black surface.

The included drill jig (optional) is a single use 3D printed part.

Compatibility

This part is fully compatible with both SSX23 (and other clones) and TM MK23.

Requirements

To use this part you will need to have following items:

Optional parts that are compatible with this product:

Customers praised the rail's "outstanding" build quality and precise fit for MK23 pistols. The included drilling template received positive feedback. Shoppers noted it eliminates frame-to-slide rattle and accommodates various optics. However, one customer reported the drill jig holes were off by 2mm, requiring redrilling. Installation requires precision to avoid stripping threads.

  • 5 stars: 9 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
R
Rowen (Vienna, Austria)
High Quality!!

It fits perfectly and is of very high quality. And the drilling template is simply brilliant.

M
Mingus (Seoul, South Korea)
Top-Tier Fit and Finish

I purchased this kit to tune my MK23, and the build quality is outstanding.
There are many upgrade parts available, but the combination I highly recommend is the Long Picatinny Rail, Slide Stabilizers, and Frame Rail.

My MK23 used to make a creaking noise due to the play between the frame and the slide, but after installing these parts, about 99% of that rattle is completely gone.
A must-have setup if you want a smoother and more solid MK23.

T
Tim K. (Västra Götaland County, Sweden)
Perfect for longer optics

I like it, now I can put scope/Red dot closer or further on a ssx23.
However, Issue still the hop-up adjustment window, still hard to access especially if I place scope/red dot over it.

H
Hayden B. (England, United Kingdom)
Fantastic

Very impressed with the quality of the products. Would rec

r
rob s. (England, United Kingdom)
Great addition

Bought for my AGS Mk23, fits great, top notch quality. Now also have the core mount and hand guard, with barrel extension on the way.

D
Dan (Auckland, New Zealand)

The rail itself is great. However, the drill jig mold holes don't line up with the ones on the rail. It's off by 2mm, so I had to redrill the holes on my TM Mk23 slide, and now the slide looks pretty messy.

B
BLUD
Does what it says on the tin.

Make sure to be precise when making the holes in the stock so the screws go in perfectly straight. Else you may strip the threads and if you for some reason have to dismount the rail again in the future, it may not go back together sturdily because there's no material left for the screws to grip. (user error)

Very sturdy! Will keep a sniper scope steady.

E
Esox
Amazing quality!

It fits with absolute precision and the finish is superb. It sits perfectly flush on the pistol and gives the pistol a little G36:ish kinda look. Love it. With the side stabilisers it truly looks and feels like a carbine rather than just a pistol. When a product comes from Tridos you can always count on quality and perfection!

R
Rich W.
Top Quality

Solid build quality! Perfectly made and fits like a dream.
