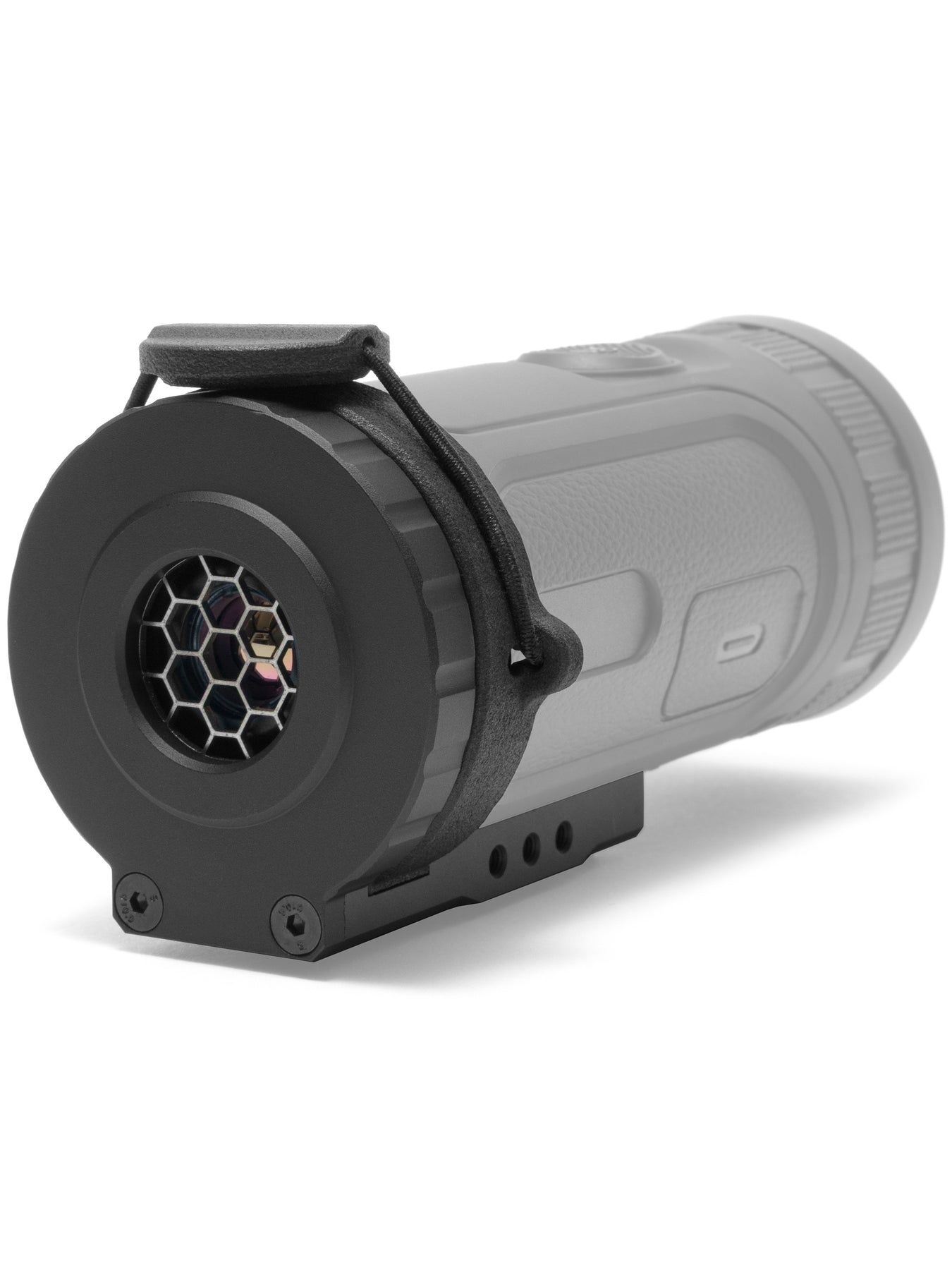

Titanium mesh protector and flip cap installed on a 1.2x10 thermal monocular above the mount base

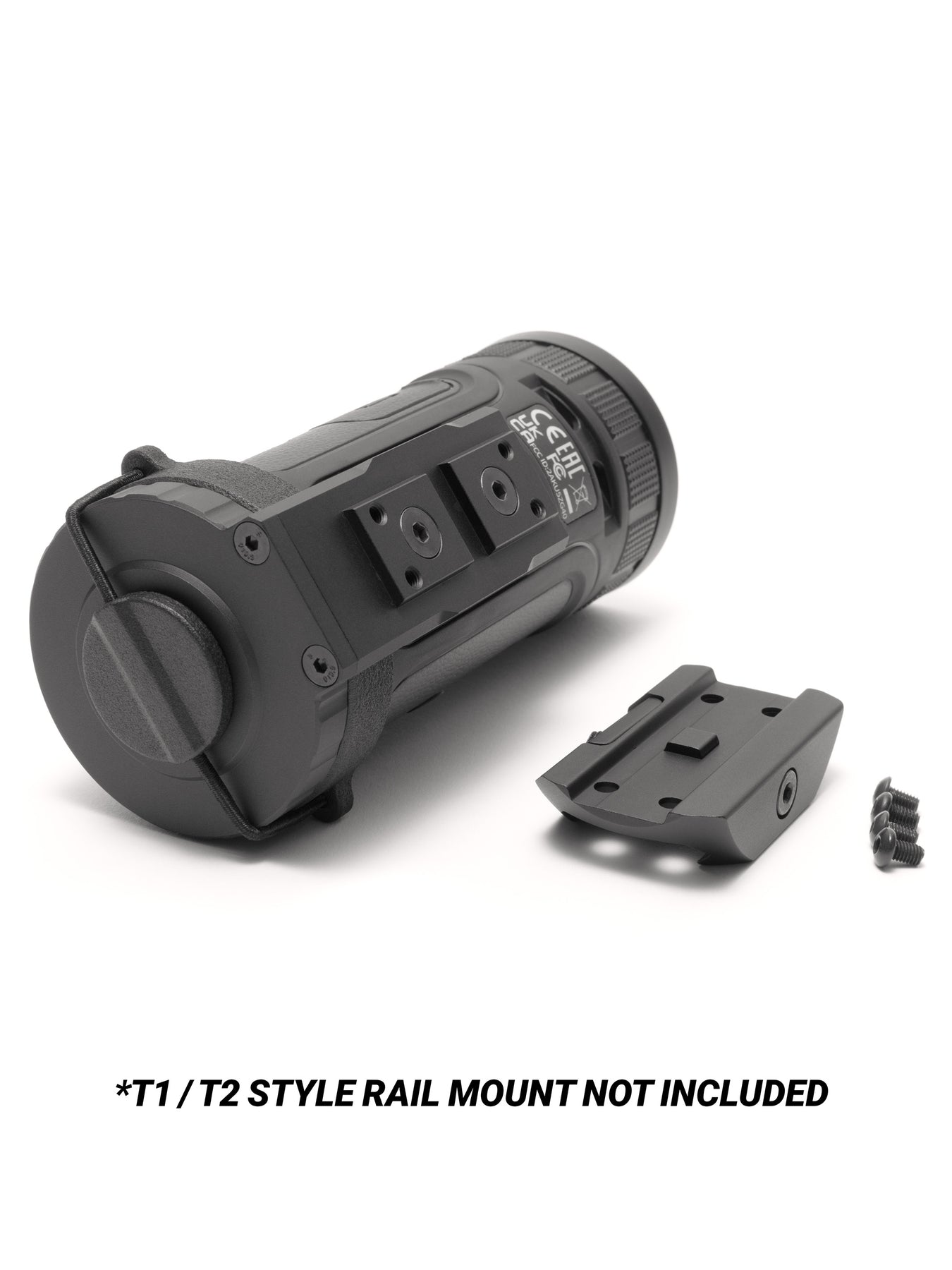

OwlSet thermal monocular with protector and mount base, T1 style rail mount shown as not included

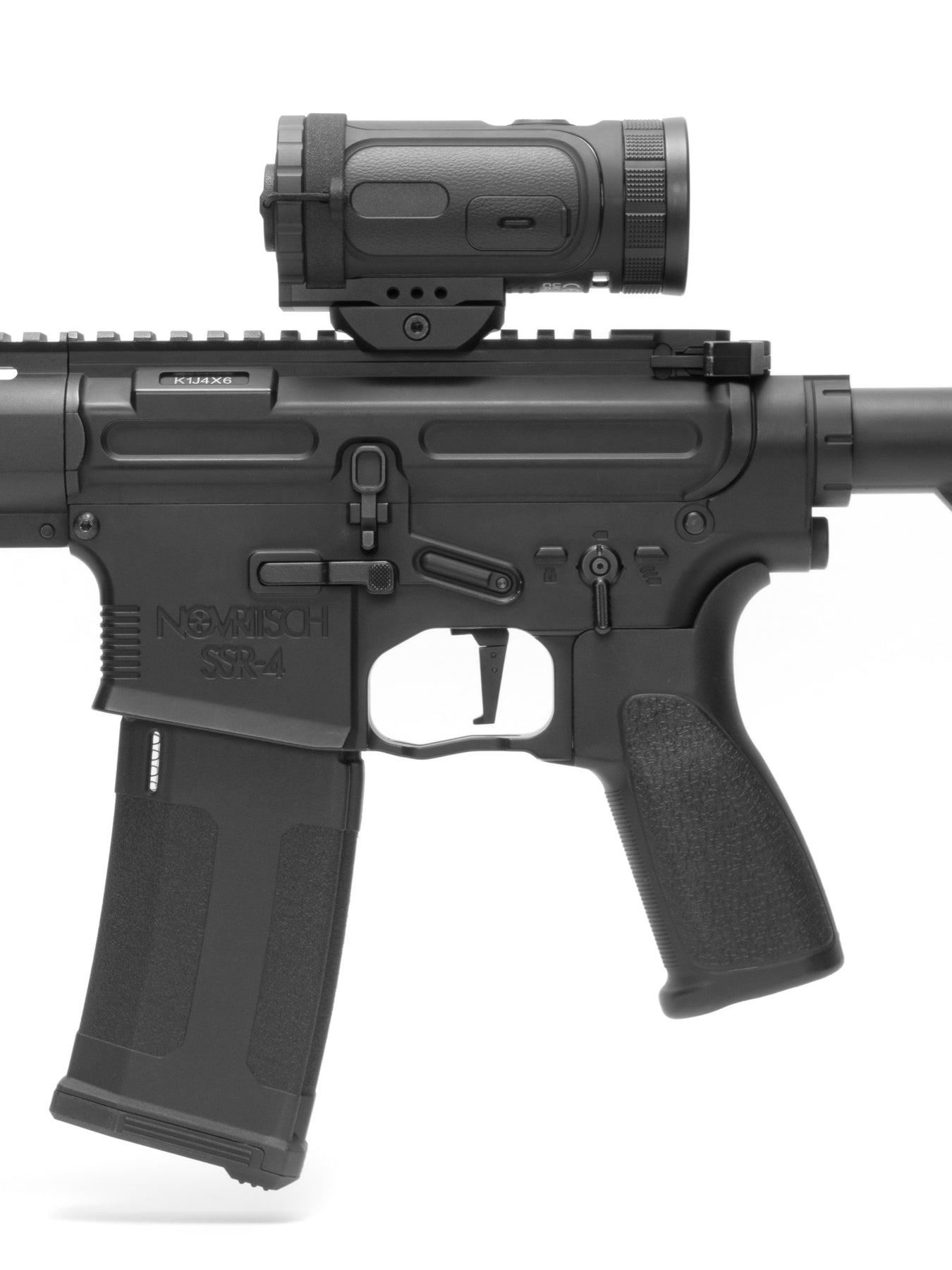

Guide 1.2x10 thermal monocular mounted on the picatinny rail of a Novritsch SSR-4 airsoft rifle

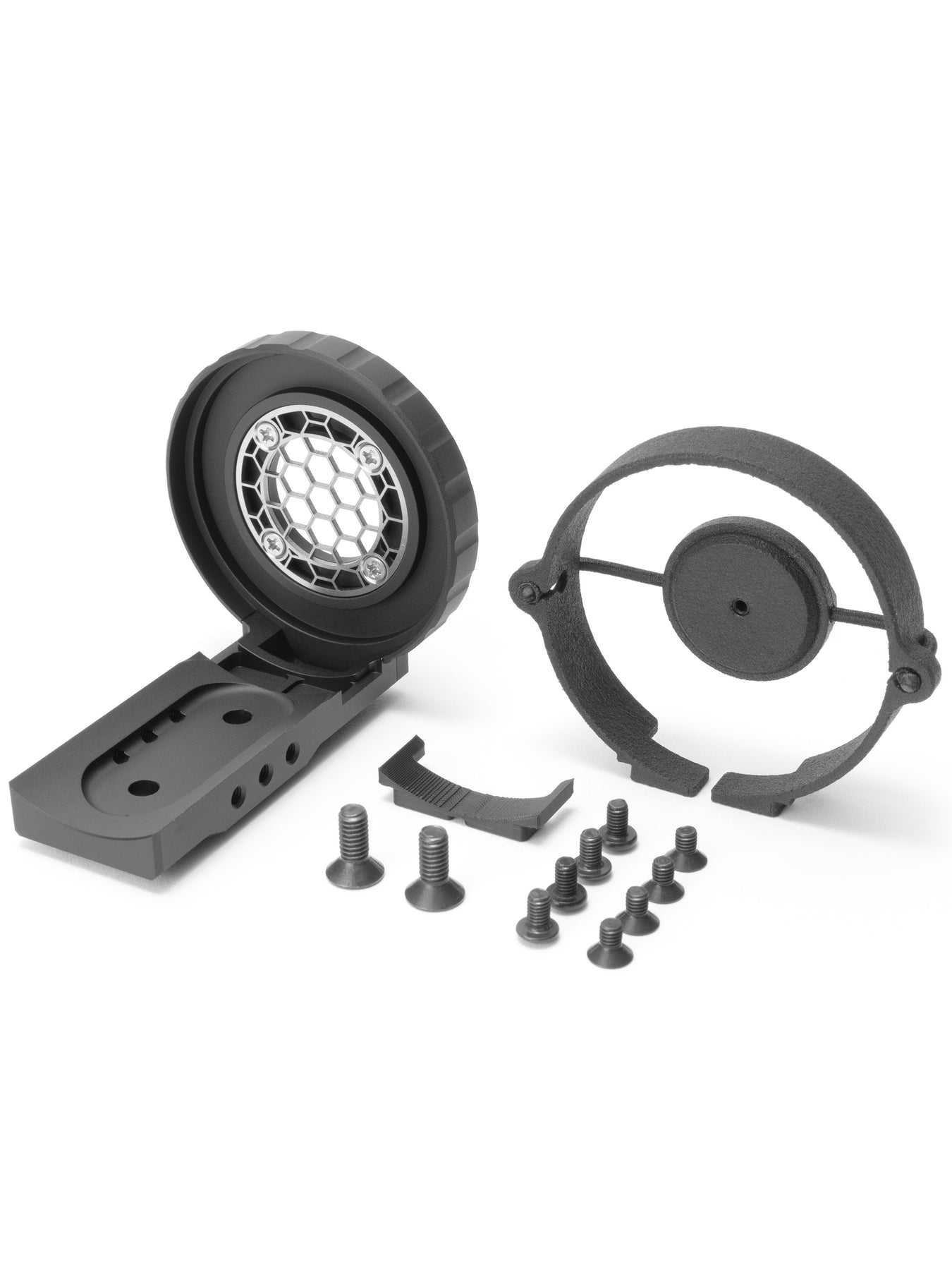

Kit contents: titanium mesh protector with flip cap, mount base, clamp ring and mounting screws
Titanium Protector and Mount for Guide TE210MS / TE211M / OwlSet Thermal Monocular
Titanium mesh protector and flip cap installed on a 1.2x10 thermal monocular above the mount base
OwlSet thermal monocular with protector and mount base, T1 style rail mount shown as not included
Guide 1.2x10 thermal monocular mounted on the picatinny rail of a Novritsch SSR-4 airsoft rifle
Kit contents: titanium mesh protector with flip cap, mount base, clamp ring and mounting screws
TRIDOS.DESIGN

Titanium Protector and Mount for Guide TE210MS / TE211M / OwlSet Thermal Monocular

€49.00 New
/
Tax included. Shipping calculated at checkout.
Required part · not included

This mount needs a T1 / RUM base to fit on a picatinny rail.

Low Profile T1 / RUM Mount for Picatinny Rail Out of stock
Add-ons

Add a top rail or spare mesh protectors.

Top Mount Rail for OwlSet / Guide 1.2x10 Thermal Monocular +€19.00
Spare 30mm Titanium Mesh Protector for Thermal Device (Set of 2) +€16.00
  • In stock
Bundle & save in 1 bundle
Guide TE210MS Thermal + Protector Bundle 3 items incl. this one · bought separately €547.00
Save €49.00 €547.00 €498.00
  • 1x mounting base
  • 2x M4*10mm countersink
  • 1x front piece
  • 2x M3*8mm countersink
  • 1x titanium mesh 30mm (pre-installed)
  • 4x M2*3mm countersink (pre-installed)
  • 1x cap mounting ring
  • 1x protective cap
  • 1x M3*4mm
  • 1x 2mm thick bungee cord (pre-installed)
  • 1x blank plug (when not using protective cap)
  • 4x M3*5mm countersink
  • 4x M3*5mm

→ Installation video

Worldwide shipping starts at 7.90€ and is calculated during checkout based on location.

Orders are usually fulfilled in 1-2 business days and are shipped from our warehouse in Netherlands.

⚠ Duties may apply if you're based outside EU economic zone

→ PROTECTS AGAINST DIRECT BB HITS
→ TITANIUM MESH PROTECTOR
→ T1 / T2 STYLE MOUNTING PATTERN

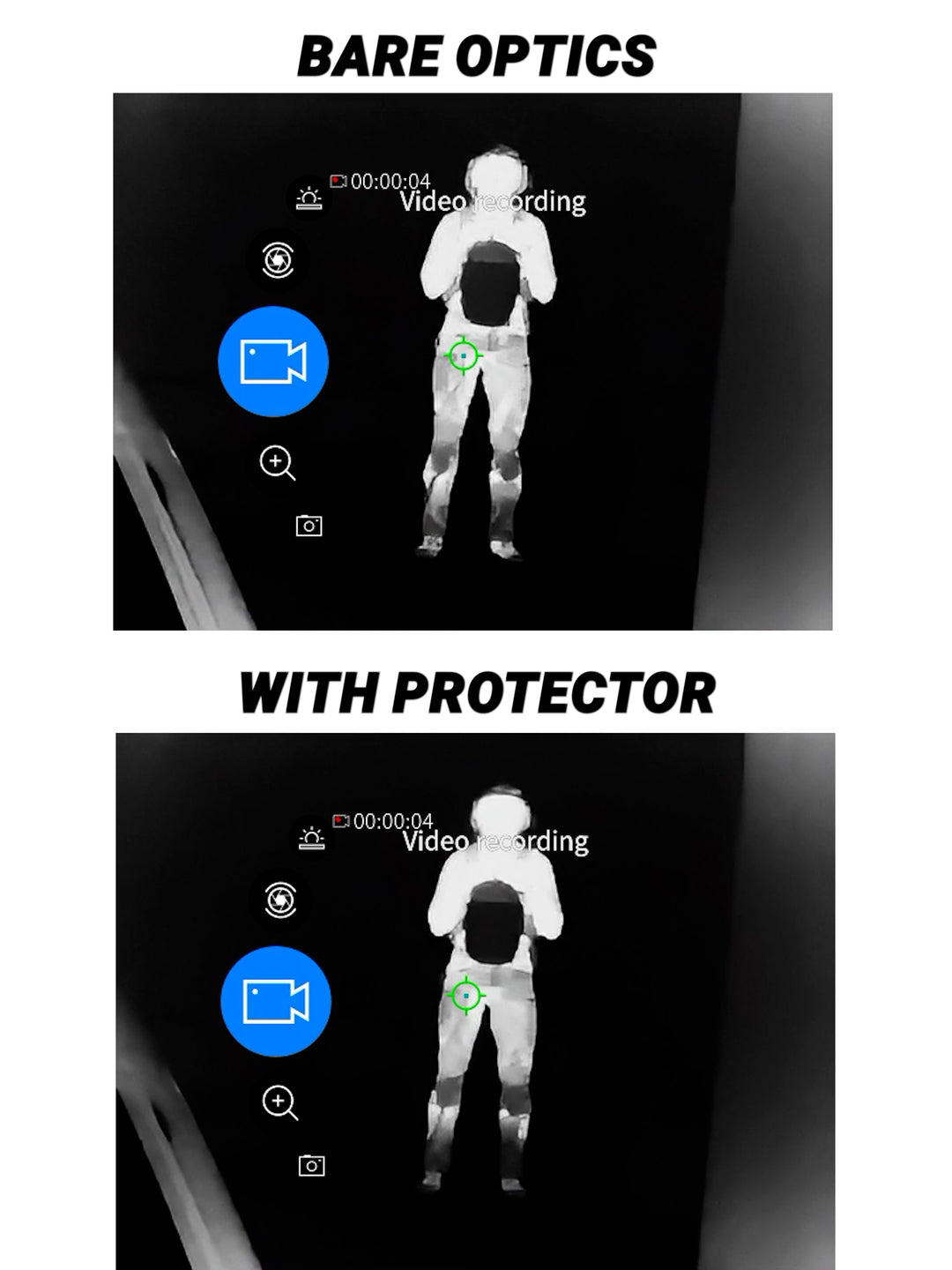

Use your Guide TE210MS / TE210S / TE211M or OwlSet Argon 1.2x10 Nano thermal monocular on your airsoft replica and protect the lens against direct BB hits. The titanium mesh has very minimal reduction to the image sharpness.

It fits the new Guide TE210MS (the TE211M successor) and the Guide TE210S, as well as the older TE211 / TE211M.

The protector is made out of 1.1mm thick titanium (⌀ 30.0mm) which can withstand multiple point blank shots at 1.5J without breaking.

Replace the mesh when it shows visible damage. Under extreme conditions (higher power, heavier BBs, repeated hits on the same spot), 100% resistance cannot be guaranteed.

3D files for replacement parts are available for download here.

COMPATIBILITY

✔ Guide TE210MS Thermal Monocular
✔ Guide TE210S Thermal Monocular
✔ Guide TE211 Thermal Monocular
✔ Guide TE211M Thermal Monocular
✔ OwlSet Argon ES 1.2x10 Thermal Monocular / VEOT-MC06
✔ OwlSet Argon ES 1.2x10 Nano Thermal Monocular / VEOT-MC07

✖ Guide TE421 Thermal Monocular

Protector check

How close is too close?

The titanium mesh can take a 1.5 J hit point-blank several times before breaking. Playing at even 3.0 J, it is most likely still safe to use for most engagement distances. Enter BB weight and power output to check what's a safe distance.

  • Not safe at all
  • Might survive a single impact
  • Rated for multiple impacts
0.20 g0.49 g
1.0 J≈  fps4.0 J
How was this calculated?

Red: above 2 J. Yellow: 1.5 to 2 J. Green: 1.5 J or less. This is an estimate for a level shot with the hop-up set flat, at 25 °C and sea level, from 1.5 m above the ground. The model counts air drag and hop-up spin. The distance shown is rounded up. Measure your power with a chronograph, with the hop-up on. The picture is not to scale: short distances are drawn wider.

Replace the mesh when it shows visible damage. Under extreme conditions (higher power, heavier BBs, repeated hits on the same spot), 100% resistance cannot be guaranteed.

⟵ Back to 🔥 New Arrivals
  • 5 stars: 1 (50%)
  • 4 stars: 1 (50%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Curt O. (Florida, United States)
Thermal Protector

Really impressed with the Titanium Protector and Mount from Tridos. I’m using it with my OwlSet thermal for an airsoft setup, and the fit is excellent. It feels solid and well made, holds the thermal securely, and gives me some extra confidence that the unit is protected during gameplay. Installation was straightforward, and the overall design looks clean without adding unnecessary bulk. Definitely a worthwhile upgrade if you’re running one of these thermals for airsoft.

A
Anonymous (North Rhine-Westphalia, Germany)
Great Produkt

It is a really well built product.
It is not that easy to install, because it's sits pretty tight.

P
Pulex

Hi, will there be a protector/mount for the Guide TE421 Thermal Monocular in near future?

TRIDOS.DESIGN

If there is enough demand, we will make it. Right now this is the first request but we will keep an eye out!
