TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber
TDC 2.0 for Action Army VSR10 Chamber

TDC 2.0 for Action Army VSR10 Chamber

Regular price€27.00 EUR
/
Tax included.
Version
  • In stock, ready to ship
  • Backordered, shipping soon

Included in BASIC & PRO:

  • 1x 9.0mm thumbscrew
  • 2x o-rings
  • 1x M3 grubscrew
  • 1x nylon arm / insert
  • 1x insert raiser
  • 1x custom M3 aluminum nut
  • 3x different aluminum nubs (black, gray and silver)
  • 1x universal nub (red)
  • 1x set of drill jig
  • 3.5mm drill bit

Included only in PRO:

  • 1x external housing
  • 1x plunger (pre-installed)
  • 1x spring (pre-installed)
  • 1x M3 set screw (pre-installed)
  • 1x spare set of double sided tape

Worldwide shipping starts at 8€ and is calculated during checkout.

Orders are usually fulfilled in 1-2 working days and are sent from Latvia (Europe).

⚠ Duties may apply if you're based outside EU customs union!

SINGLE BEST PERFORMANCE UPGRADE FOR VSR10. PERIOD.

⚠ CHECK FOR CHAMBER COMPATIBILITY BELOW BEFORE BUYING!

Finally, an external adjuster for the Action Army VSR10 chamber! It replaces the original hop arm with a nub system and click / smooth adjuster mechanism. You can make insanely precise adjustments this way and tune your shooting trajectory to perfection.

Compatibility

TDC 2.0 is compatible with any bucking / r-hop. Compatible only with non-bridged barrels.

It's not the same with hopup chambers - our TDC's are designed to fit only a specific chamber. Here are the exact compatible chambers that this version of TDC 2.0 works with:

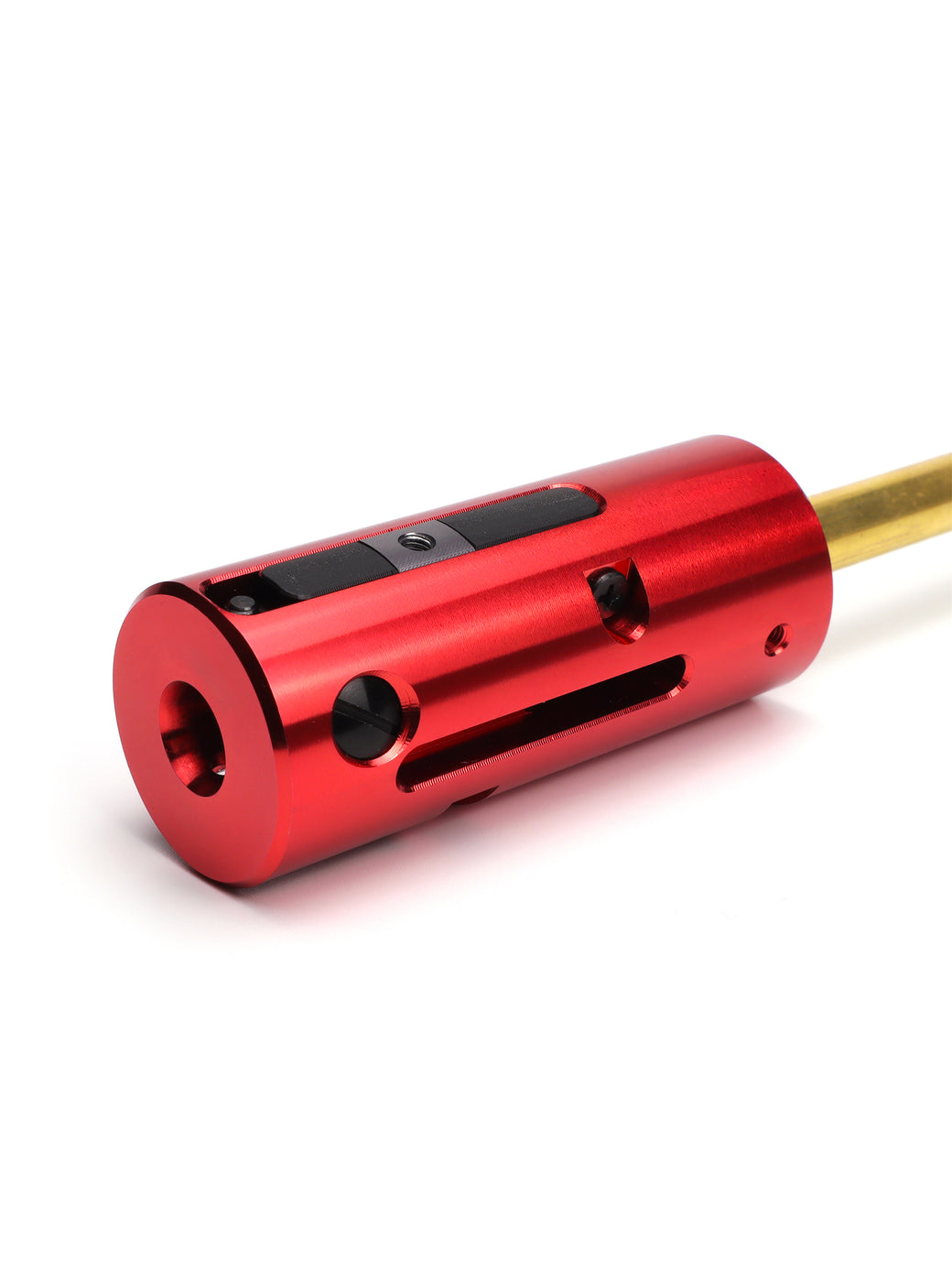

Red CNC Action Army VSR10 chamber Yes
Gray CNC Action Army VSR10 chamber Yes
Genuine Tokyo Marui VSR10 chamber different version needed
Stock SSG10 A1/A2/A3 chamber
different version needed
Maple Leaf VSR10 chamber
No



Lowest profile on the market

Don't have clearance for TDC you say? Our TDC requires a clearance of just 5.0mm, which means it will work even with the biggest scopes and low scope rings.

It's not going anywhere

The screw is installed in 1/2 aluminum, 1/2 undersized Nylon thread which provides the ultimate combination of durability and resistance to the screw.  O-rings and external housing provide additional resistance. Trust me - it's not moving by itself.

No epoxy gluing

We really didn't like the idea of having to permanently glue something on the outside of the barrel. That's why our TDC is an all-internal upgrade that installs inside the hop-up chamber and requires no gluing. For the PRO version, the external housing comes with pre-installed strong double sided 3M tape for easy installation and easy removal without damaging the gun. We even include a spare set of tape in the kit.

Vertical pressure nub system

Our TDC replaces traditional hop-up arms with CNC machined aluminum nubs that provide perfectly vertical pressure to the bucking. Each TDC comes with 3x different nubs so you can choose whichever you like the best or use the red universal nub with any off-the-shelf nub like ML Omega / Panthera / soft nub / etc.

Fool-proof installation

We made sure that our TDC 2.0 can be installed with any level of skill. We made sure that our drill jigs are usable with handheld drills, the process is dead simple and there's no way you can mess it up. The drill bit also comes with a little shelf to make the pin removal easier on the Action Army chamber.

We also have detailed step-by-step installation videos from start to finish that can be found here.

PRO vs. BASIC

PRO version provides the absolute perfection in terms of feedback and looks. The external aluminum housing provides a satisfying click to the thumbscrew that allows to precisely adjust the TDC and protects the screw from accidental bumps. It also acts as an extra safety layer to make sure the screw doesn't turn by itself.

BASIC version provides the same internals and performance of the TDC 2.0 PRO but at a more affordable price point, just without the external aluminum housing (clicking mechanism). In case you ever change your mind, you can purchase the TDC 2.0 Pro Upgrade at any time down the road for the full experience!

Materials

All of the parts in the kit, except for the drill jig, are CNC machined aluminum and Nylon (some pictures can be outdated). Everything is made to fit flawlessly together with no wobble whatsoever. They look and feel exceptional.

Required for installation:

  • drill or drill-press
  • beer (optional)
